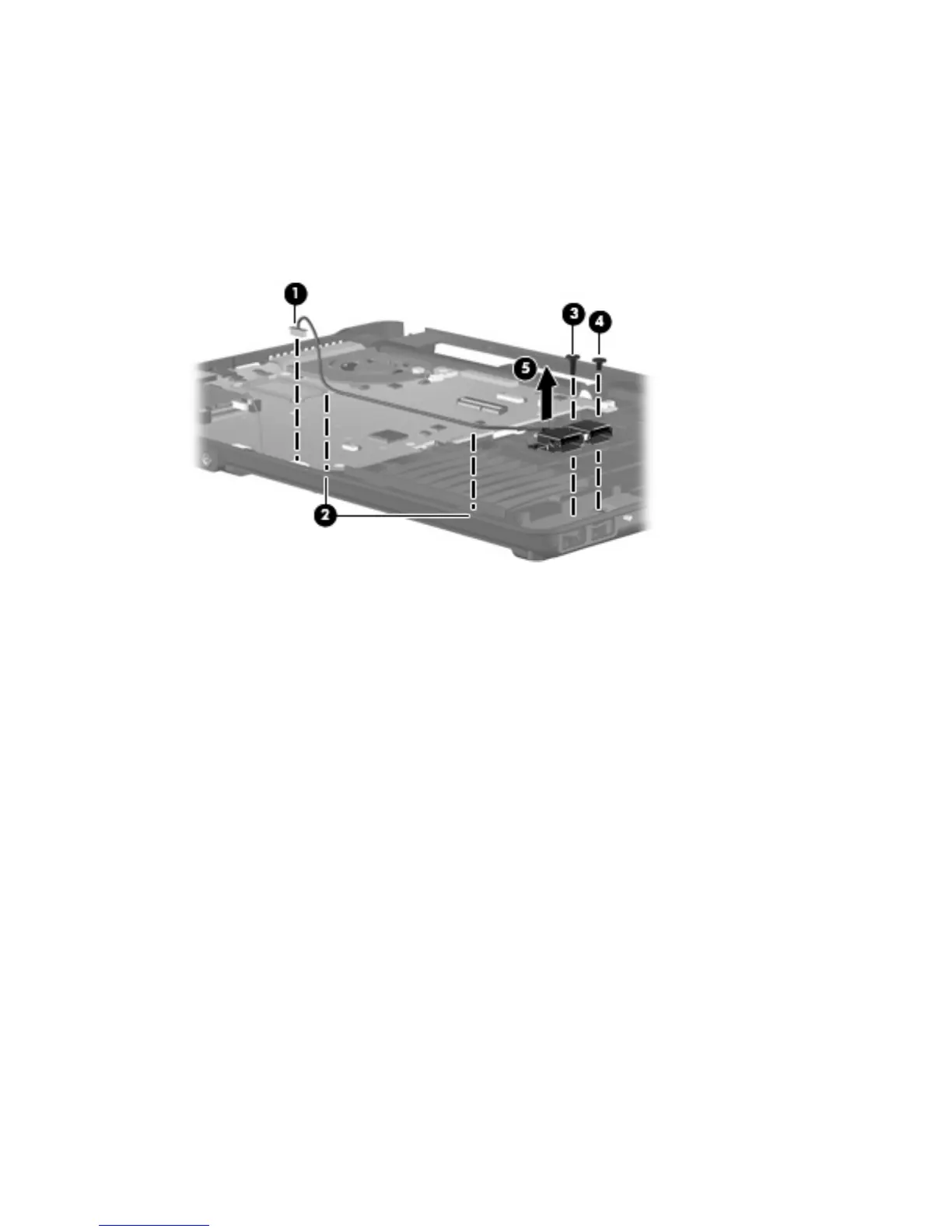

USB connector module
1. Disconnect the USB cable from the system board (1).
2. Lift up the USB connector and remove the cable from the front edge of the base enclosure (2).
3. Remove the long Phillips PM2.5×9.0 screw (3) and the short Torx T8M2.5×4.0 screw (4) from the
system board.
4. Remove the USB connector module (5).
Reverse this procedure to install the USB connector module.
72 Chapter 4 Removal and replacement procedures
