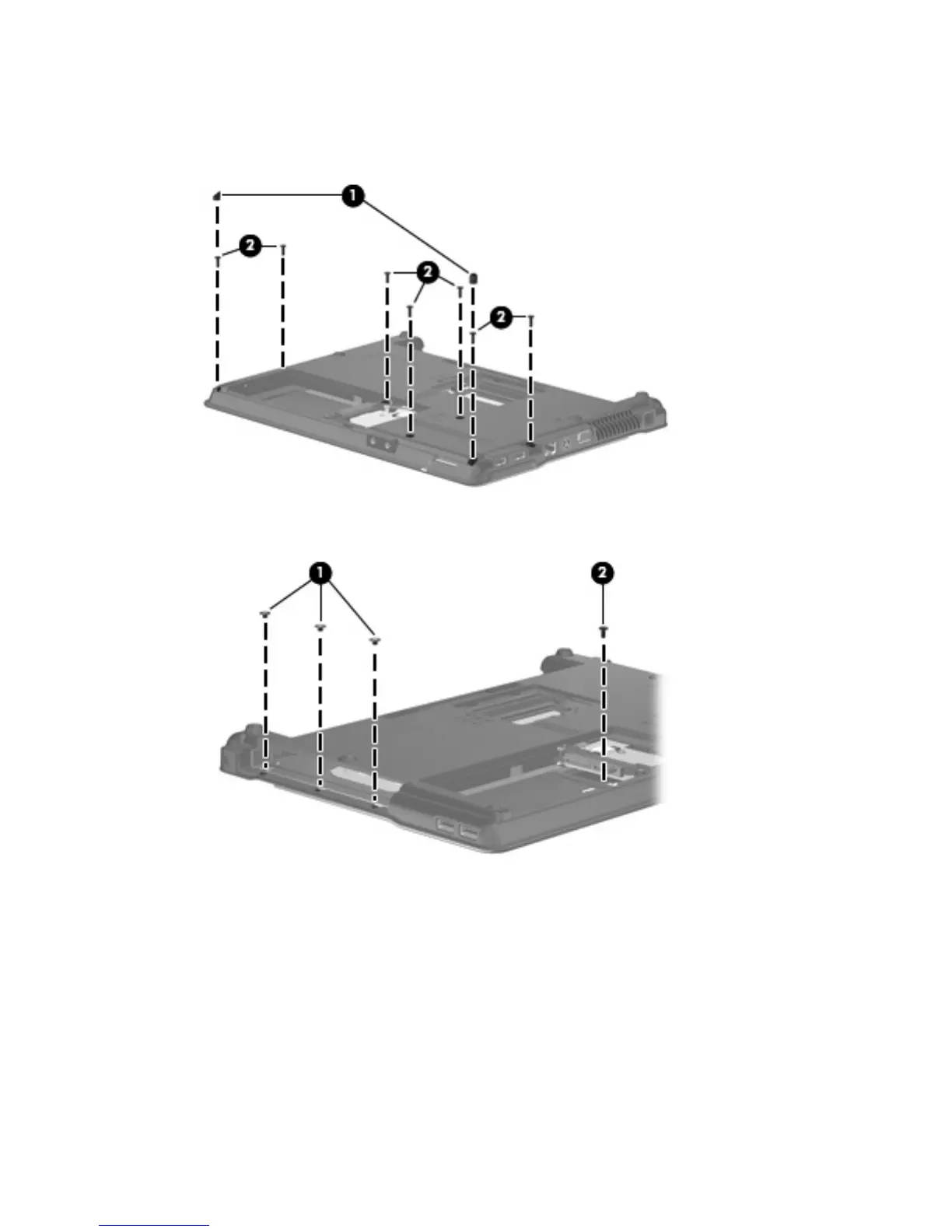

2. Remove the two rubber screw covers (1) and the seven slotted Torx ST8M2.5×7.0 screws (2) that
secure the top cover to the computer. The rubber screw covers are available in the Rubber Kit,
spare part numbers 497622-001 (for use only with HP Compaq 6535s Notebook PC models) and
491654-001 (for use only with HP Compaq 6530s and 6531s Notebook PC models).
3. Remove the three Phillips PM2.0×2.0 broadhead (5-mm) screws from the optical drive bay (1), and
remove the Torx T8M2.5x4.0 screw from the hard drive bay (2).
4. Turn the computer right-side up.
Component replacement procedures 69
