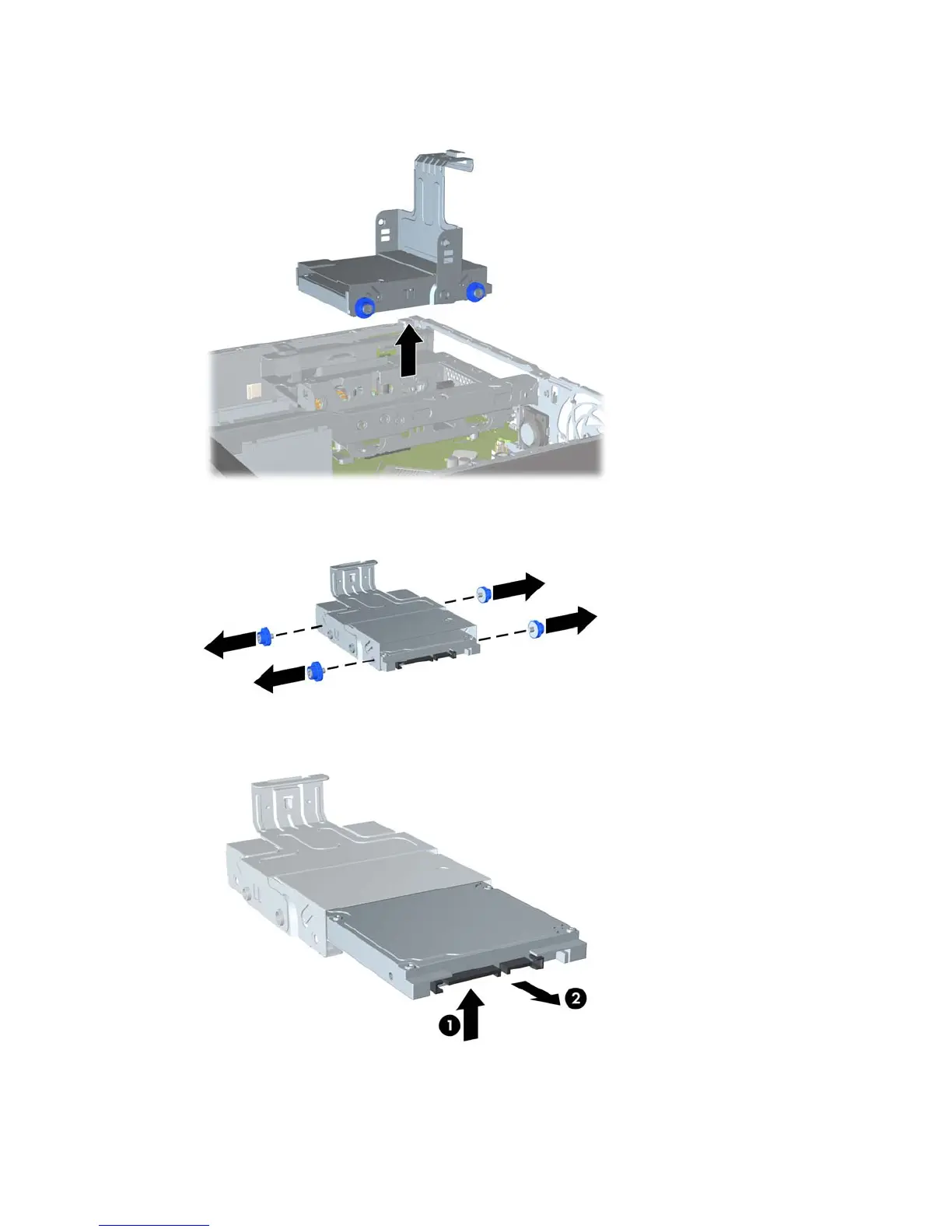

9. Lift the hard drive carrier straight up and out of the chassis.
Figure 2-15 Removing the Hard Drive Carrier
10. Remove the four guide screws from the sides of the hard drive carrier.
Figure 2-16 Removing the Guide Screws
11. Lift the hard drive up to the top of the carrier (1) and slide the drive out of the carrier (2).
Figure 2-17 Removing the Hard Drive from the Carrier
