Hardware Upgrades
4. Raise the Easy Access drive bay to the upright position and
connect the flat ribbon cable and audio cable to the system board.

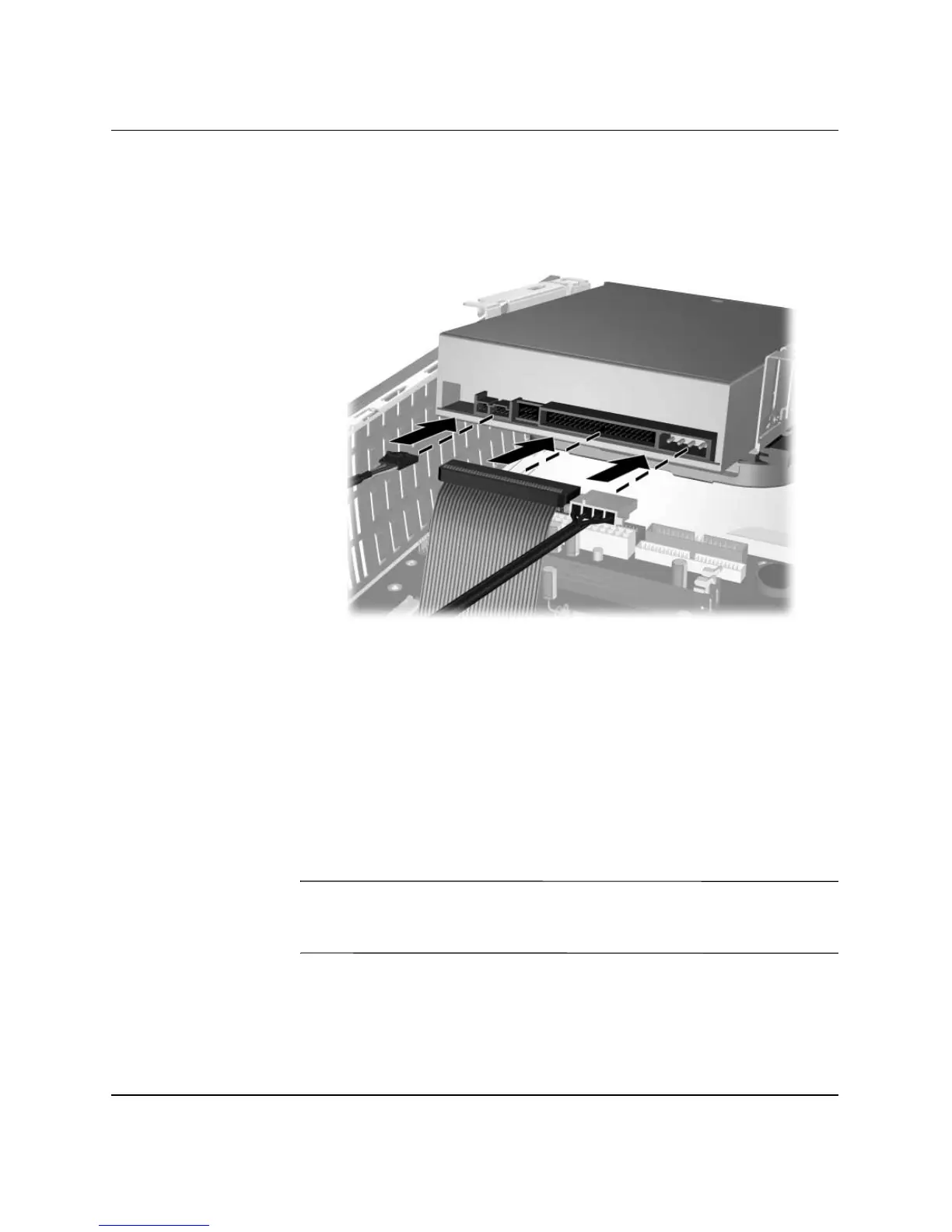

Connecting the Power Cable, Flat Ribbon Cable and Audio Cable
5. Connect the power cable, flat ribbon cable, and audio cable to the
rear of the optical drive.
6. Return the Easy Access drive bay to the down position. Be sure
not to pinch the cables in the chassis when lowering the Easy
Access drive bay.
7. Replace the front bezel and computer access panel.
The system automatically recognizes the drive and reconfigures the
computer.
Ä
CAUTION: When servicing the computer, ensure that cables are placed
in their proper locations during the reassembly process. Improper cable
placement can damage the computer.
