HP Compaq dc5100 MT User Manual

Hardware Reference Guide www.hp.com 2–23
Hardware Upgrades

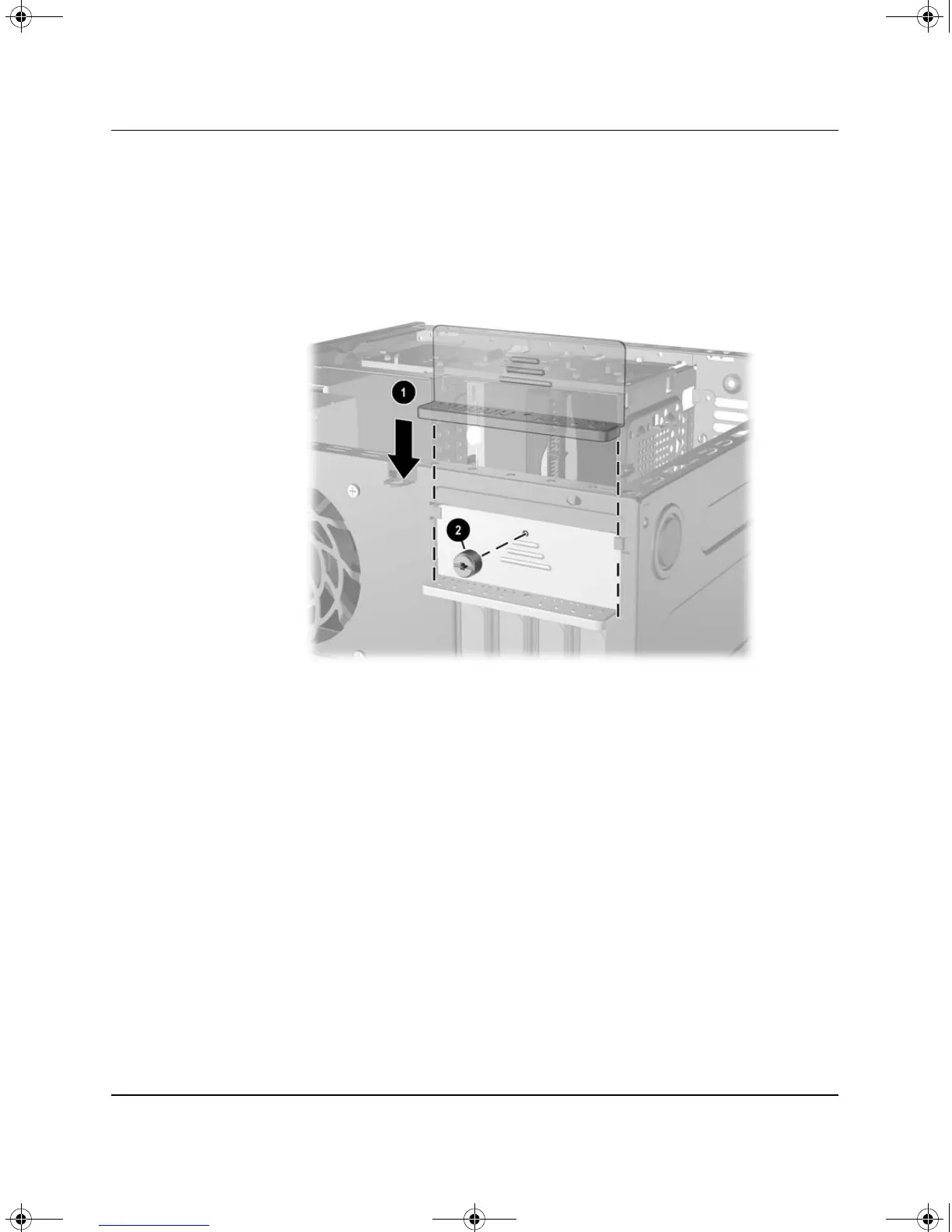

8. While holding the expansion card bracket against the chassis,
slide the slot cover lock down toward the expansion card brackets
and slot covers 1 to secure them in place and replace the
thumbscrew 2 that secures the slot cover lock.
Securing the Expansion Cards and Slot Covers
9. Complete the procedure described in the “Reassembling the
Computer” section of this chapter.
376292-001.book Page 23 Friday, February 18, 2005 2:42 PM

HP Compaq dc5100 MT Specifications

General

Memory	Up to 4 GB DDR2 SDRAM
Memory Slots	4 DIMM slots
Hard Drive	Up to 160 GB SATA
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G
Optical Drive	CD-ROM, DVD-ROM
Graphics	Intel GMA 950
Audio	Integrated AC'97 audio
Expansion Slots	1 PCI Express x16, 3 PCI
Ports	1 serial, 1 parallel, audio in/out
