Replacing the Computer Access Panel
Place the access panel on the chassis with about 1.3 cm (1/2 inch) of the panel hanging off the back of
the chassis and slide it into place (1). Ensure that the hole for the thumbscrew is aligned with the hole
in the chassis and tighten the thumbscrew (2).

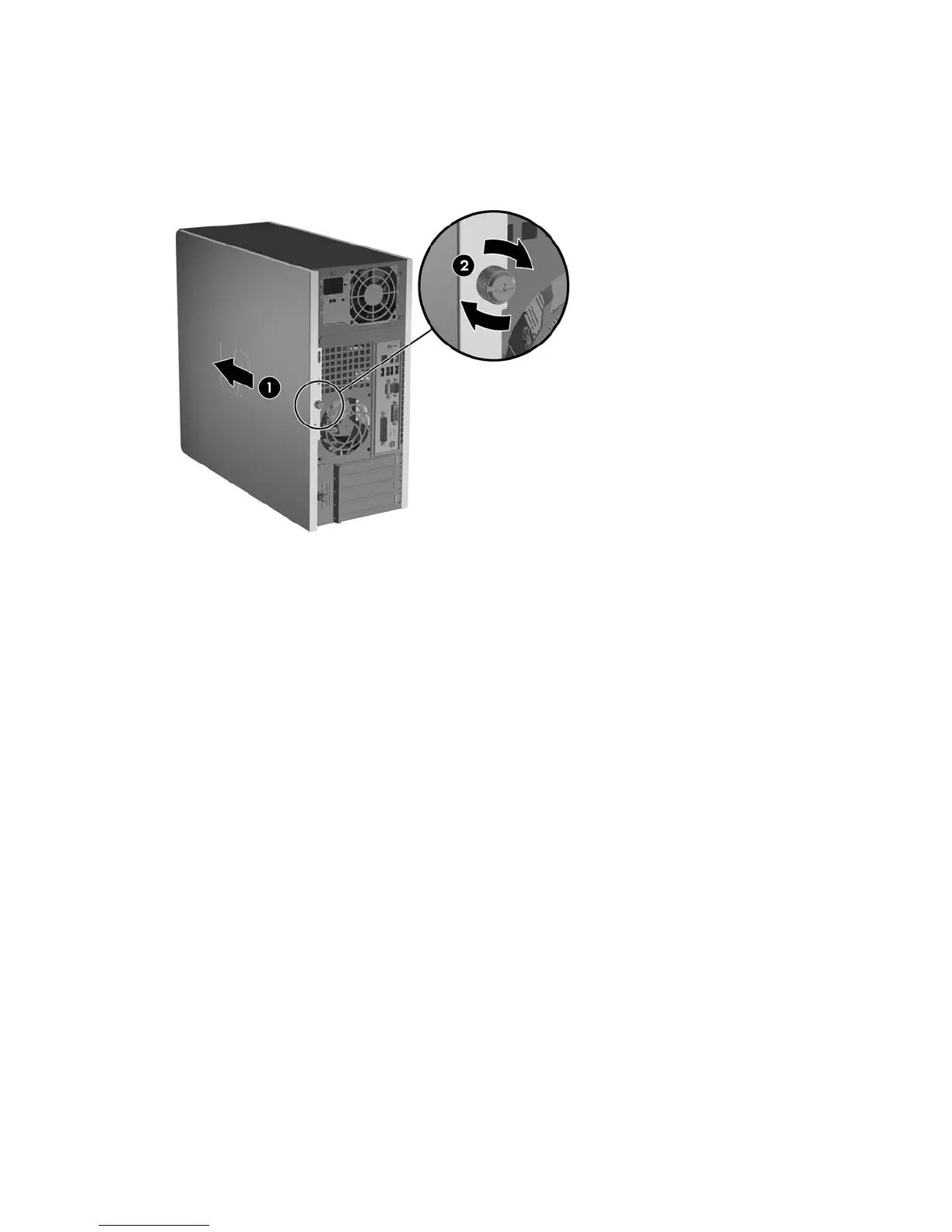

Figure 2-2 Replacing the Computer Access Panel
