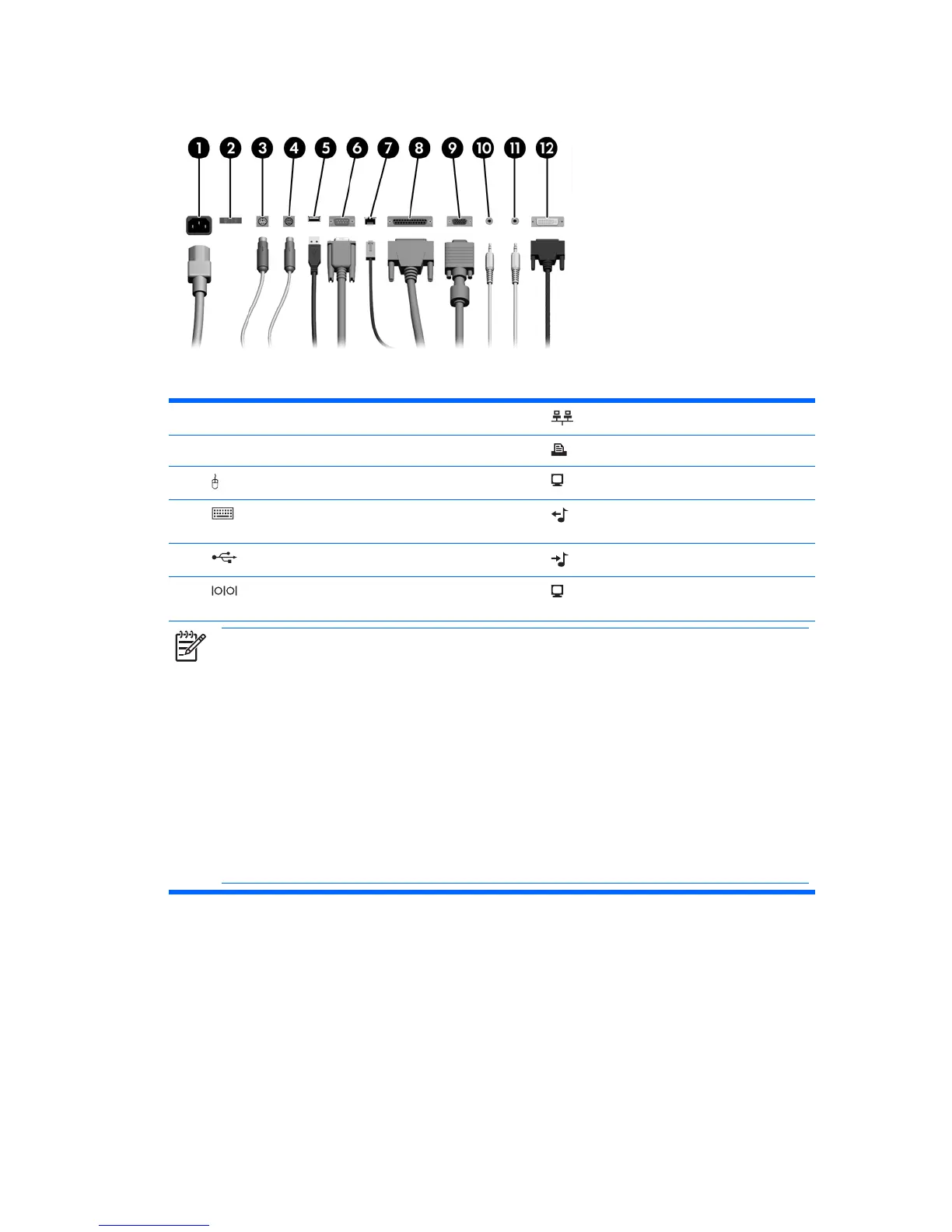

Rear Panel Components
Table 1-2 Rear Panel Components
1 Power Cord Connector 7 RJ-45 Network Connector
2 Voltage Select Switch 8 Parallel Connector
3 PS/2 Mouse Connector (green) 9 Monitor Connector
4 PS/2 Keyboard Connector (purple) 10 Line-Out Connector for powered audio
devices (green)
5 Universal Serial Bus (USB) 11 Line-In Audio Connector (blue)
6 Serial Connector 12 Digital Video Interface (DVI-D) Monitor
Connector
NOTE Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express graphics card is installed in the
computer. The integrated graphics can be enabled if a graphics card based on an ATI graphics controller is
plugged into the PCIe x16 slot.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
The DVI-D connector will only work with display devices that have DVI input.
The Line-In and Line-Out audio connectors can be “retasked” to work as either Line-In, Line-Out, or
Microphone connectors by clicking the Realtek HD Audio Manager icon (a red speaker) in the task tray or
the Realtek entry in the operating system's Control Panel and selecting the Retasking Enable option.
ENWW Rear Panel Components 3
