HP Compaq dc5750 MT Hardware Reference Guide

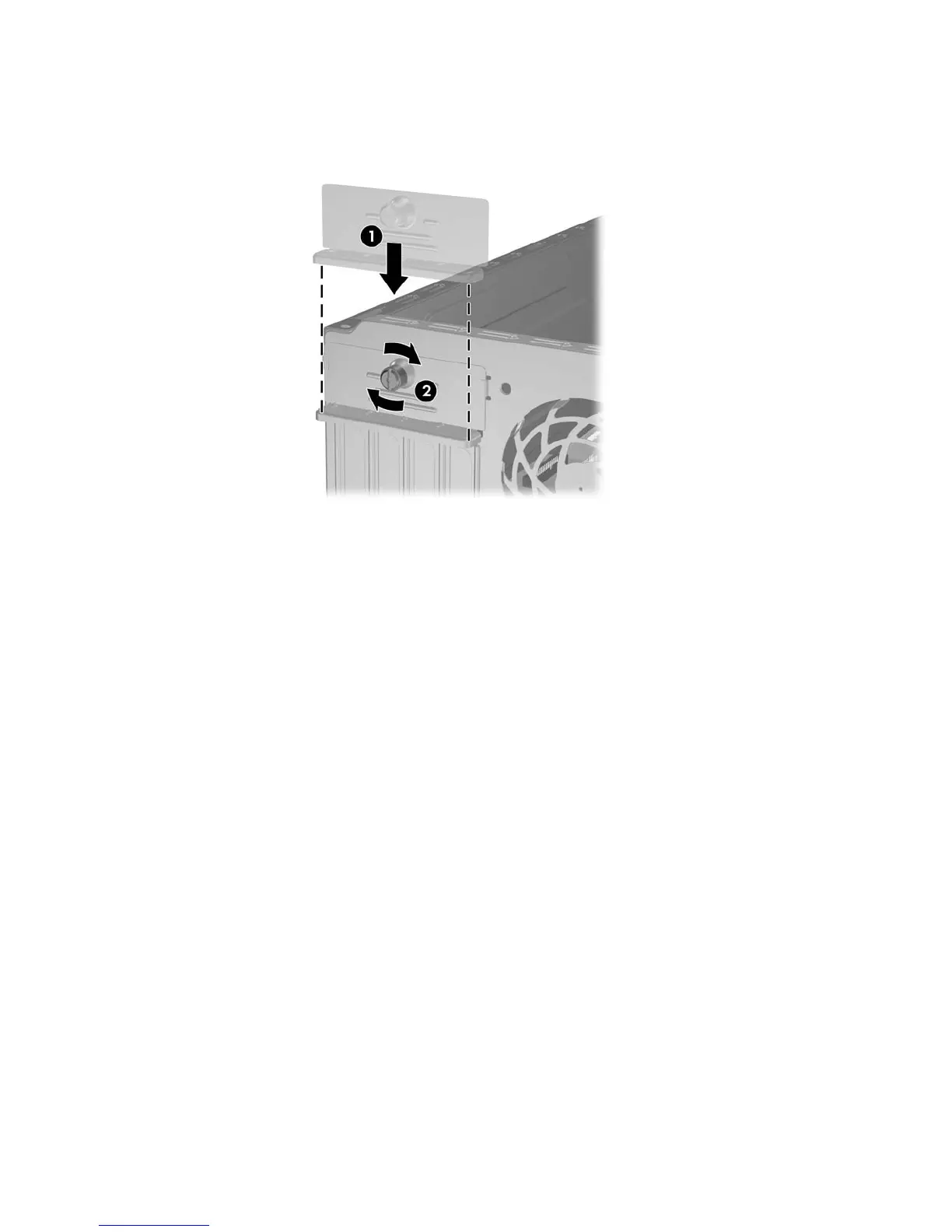

12. While holding the expansion card bracket against the chassis, slide the slot cover lock down toward
the expansion card brackets and slot covers (1) to secure them in place then replace the
thumbscrew (2) that secures the slot cover lock.
Figure 2-13 Securing the Expansion Cards and Slot Covers
13. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
14. Replace the computer access panel.
15. Reconnect the power cord and any external devices, then turn on the computer.
16. Lock any security devices that were disengaged when the access panel was removed.
17. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide on the
Documentation and Diagnostics CD for instructions about using Computer Setup.
ENWW Removing or Installing an Expansion Card 21

HP Compaq dc5750 MT Specifications

General

Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Audio	Integrated High Definition audio
Power Supply	300W
Processor	AMD Athlon 64 X2, AMD Athlon 64, AMD Sempron
Graphics	Integrated ATI Radeon Xpress 1150 or optional discrete graphics
Optical Drive	DVD-ROM, DVD+/-RW
Expansion Slots	1 PCI Express x16
Ports	1 serial, 1 parallel, 2 PS/2, 1 VGA, 1 audio in, 1 audio out
Operating System	Windows XP Professional
Dimensions	16.5 inches
Storage	SATA Hard Drive
