b. If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.

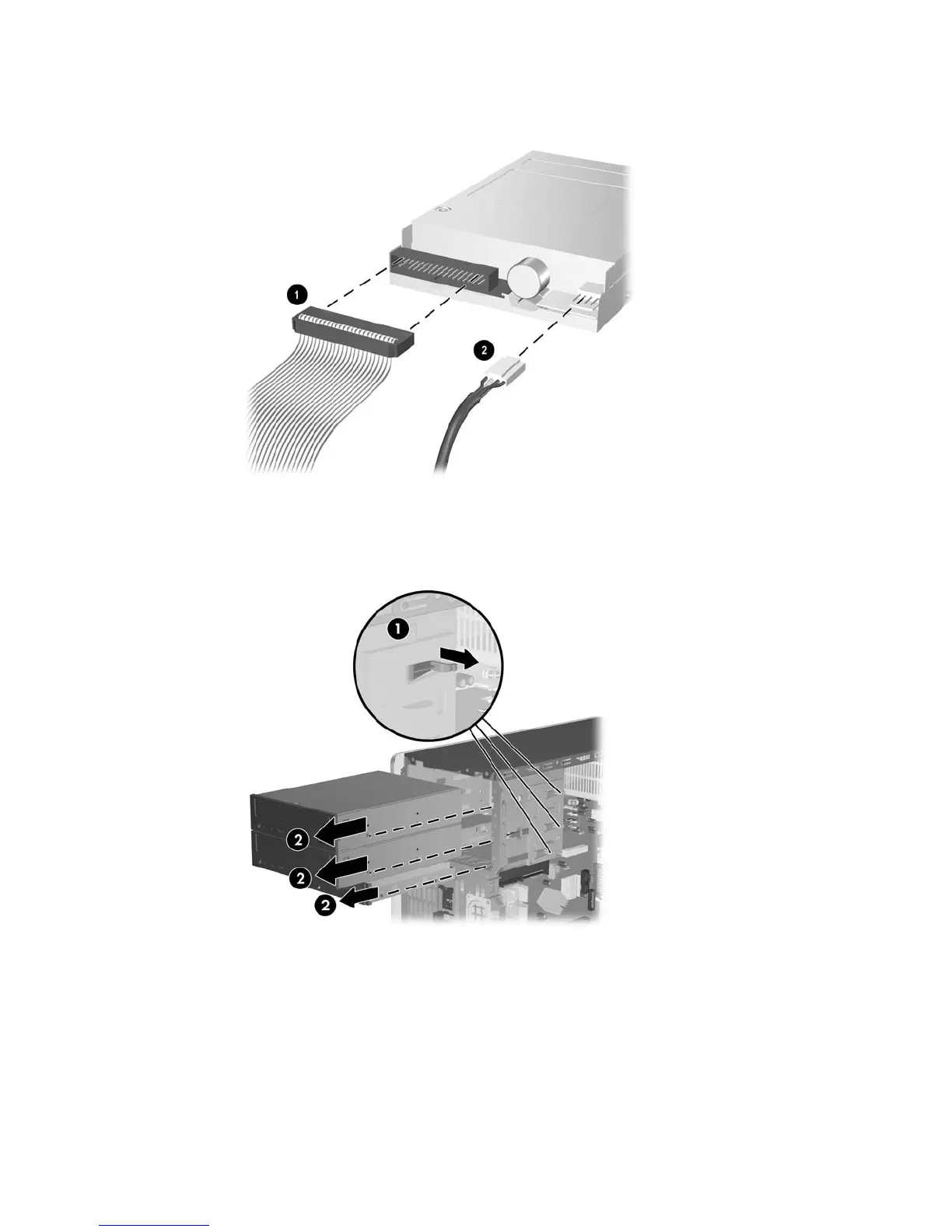

Figure 2-16 Disconnecting the Diskette Drive Cables
7. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
Figure 2-17 Removing the External Drives
8. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
ENWW Installing Additional Drives 25
