3. Connect the power and data cables to the drive as indicated in the following illustrations.
a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back
of the drive.

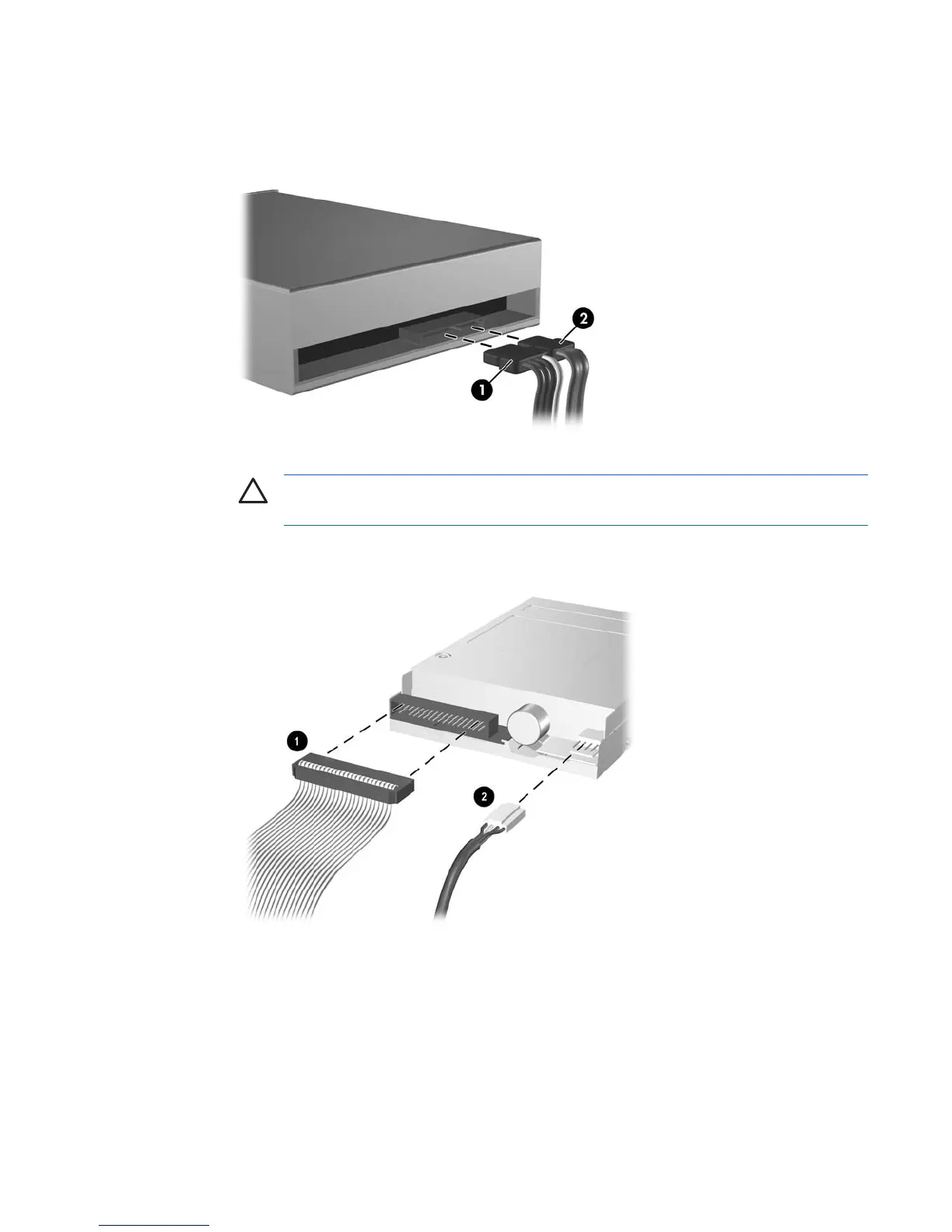

Figure 2-20 Connecting the Optical Drive Cables
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in)
radius. A sharp bend can break the internal wires.
b. If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.
Figure 2-21 Connecting the Diskette Drive Cables
4. If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
ENWW Installing Additional Drives 27

HP Compaq dc5750 MT Specifications

General

Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Audio	Integrated High Definition audio
Power Supply	300W
Processor	AMD Athlon 64 X2, AMD Athlon 64, AMD Sempron
Graphics	Integrated ATI Radeon Xpress 1150 or optional discrete graphics
Optical Drive	DVD-ROM, DVD+/-RW
Expansion Slots	1 PCI Express x16
Ports	1 serial, 1 parallel, 2 PS/2, 1 VGA, 1 audio in, 1 audio out
Operating System	Windows XP Professional
Dimensions	16.5 inches
Storage	SATA Hard Drive
