7. Remove the power cable (1) and primary data cable (2) and secondary data cable (if necessary)
(3) from the cable retainers to make it easier to access the drive.

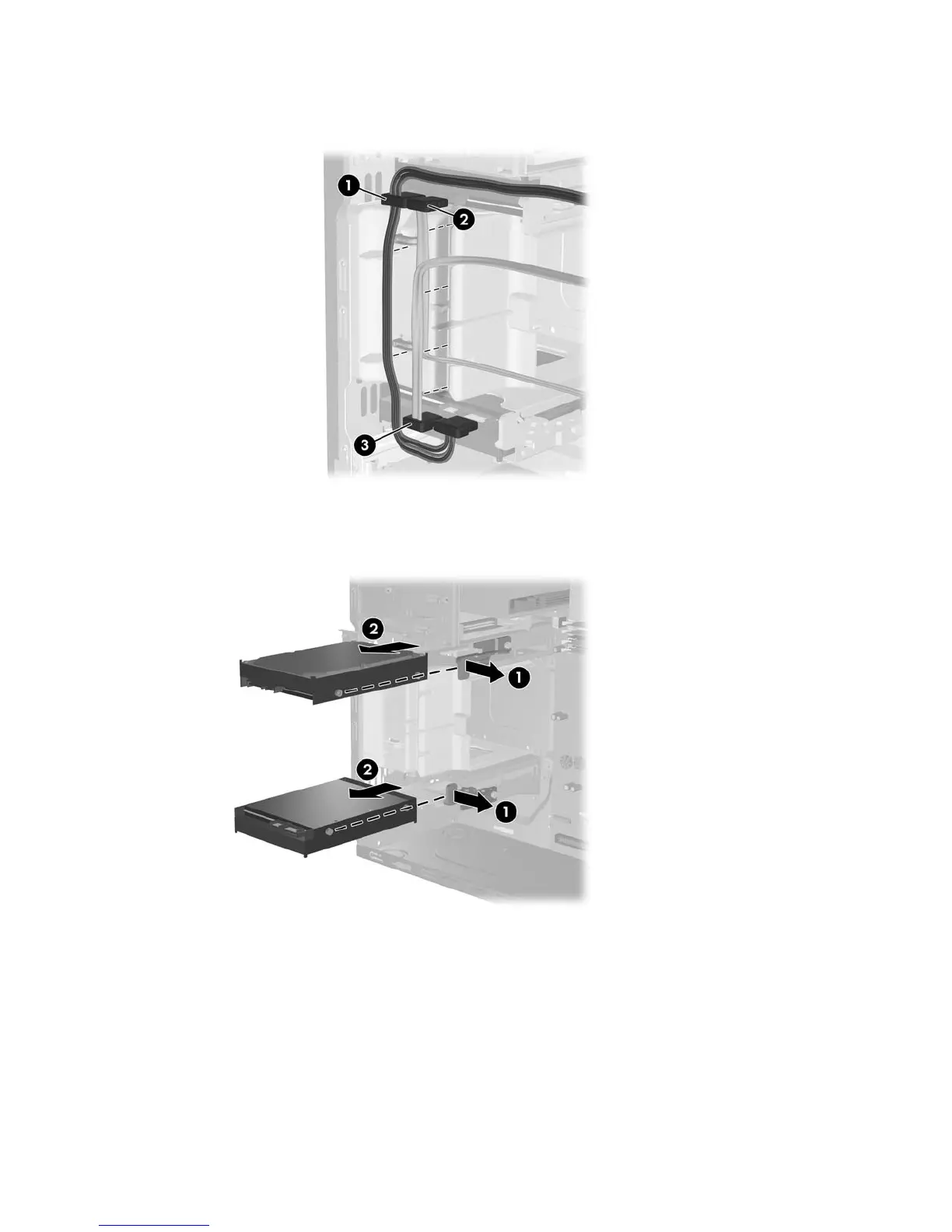

Figure 2-24 Removing Cables from Cable Retainers
8. Release the drive by pulling the green release tab away from the drive (1) and sliding the drive out
of the bay (2).
Figure 2-25 Removing a Hard Drive
9. Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
30 Chapter 2 Hardware Upgrades ENWW
