HP Compaq dc7100 SFF - Removing a Drive from the Multibay

2-40 www.hp.com Hardware Reference Guide
Hardware Upgrades
Removing a Drive from the MultiBay
1. Remove any removable media, such as a compact disc, from the
drive.
2. Before removing an optical drive, stop the drive using the Safely
Remove Hardware icon on the Windows task bar.
3. If you are not hot-swapping a CD-ROM drive, exit all software
applications, shut down the operating system software, and turn
off the computer.
4. Remove the MultiBay security screw, if it has been installed.
Refer to the “Uninstalling the MultiBay Security Screw” section
for instructions on removing the MultiBay security screw.

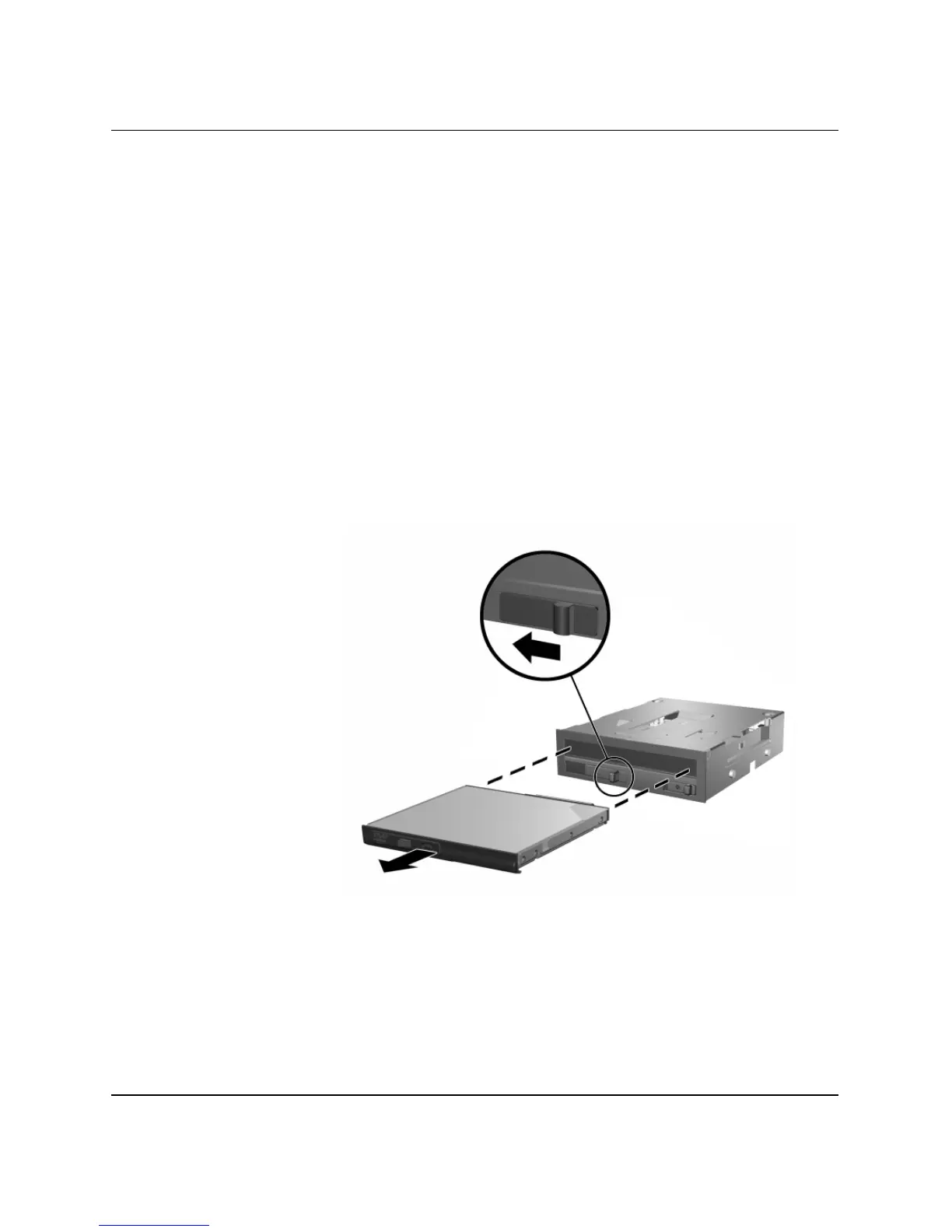

5. Slide the eject lever to the left to eject the drive from the
MultiBay.
Removing a Drive from the MultiBay
