Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 27).
2. Remove the computer access panel (
Computer Access Panel on page 31).

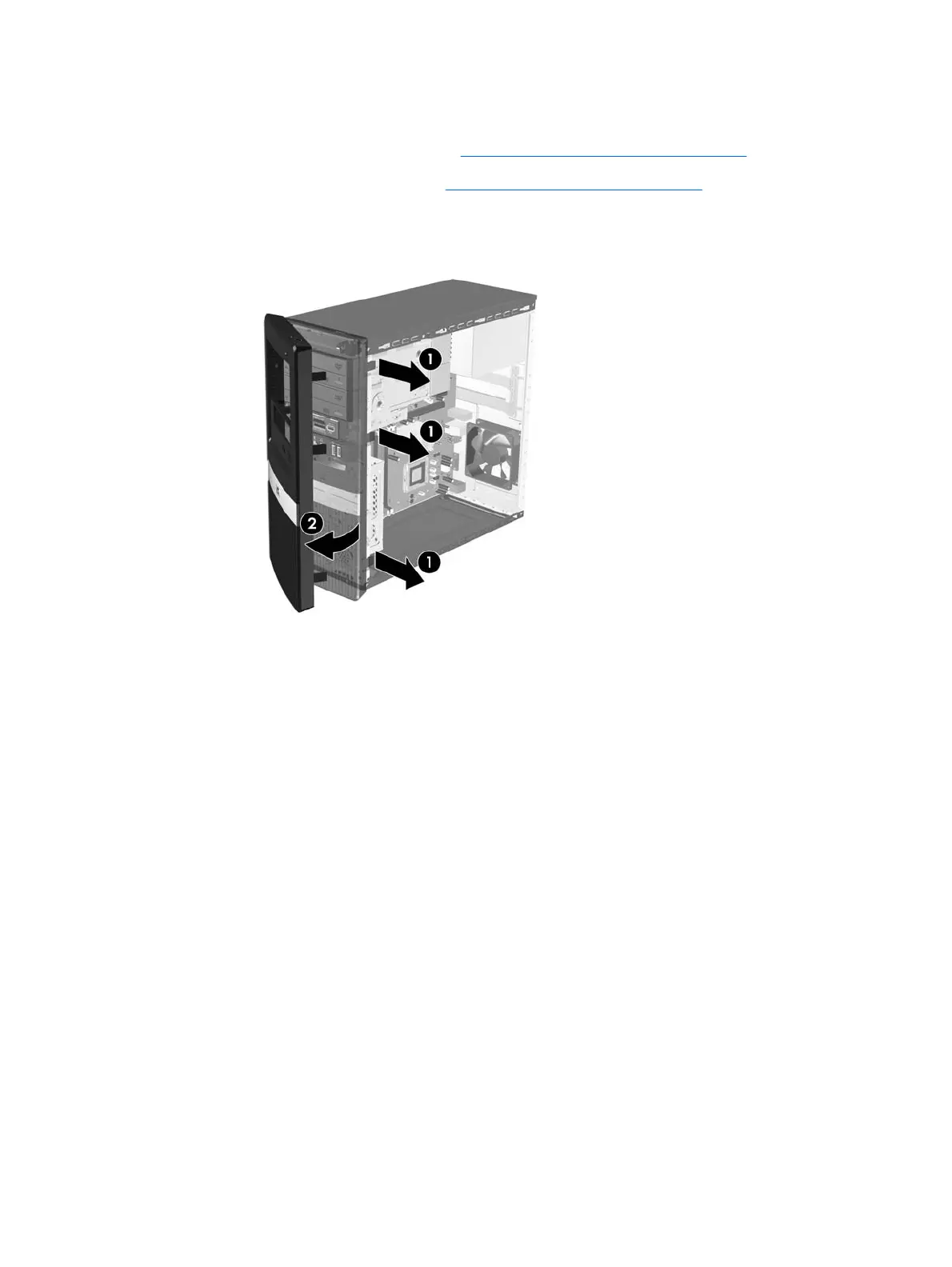

3. Press outward on the three latches on the right side of the bezel (1), then rotate the right side of
the bezel off the chassis (2) followed by the left side.
To reinstall the front bezel, reverse the removal procedure.
32 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
