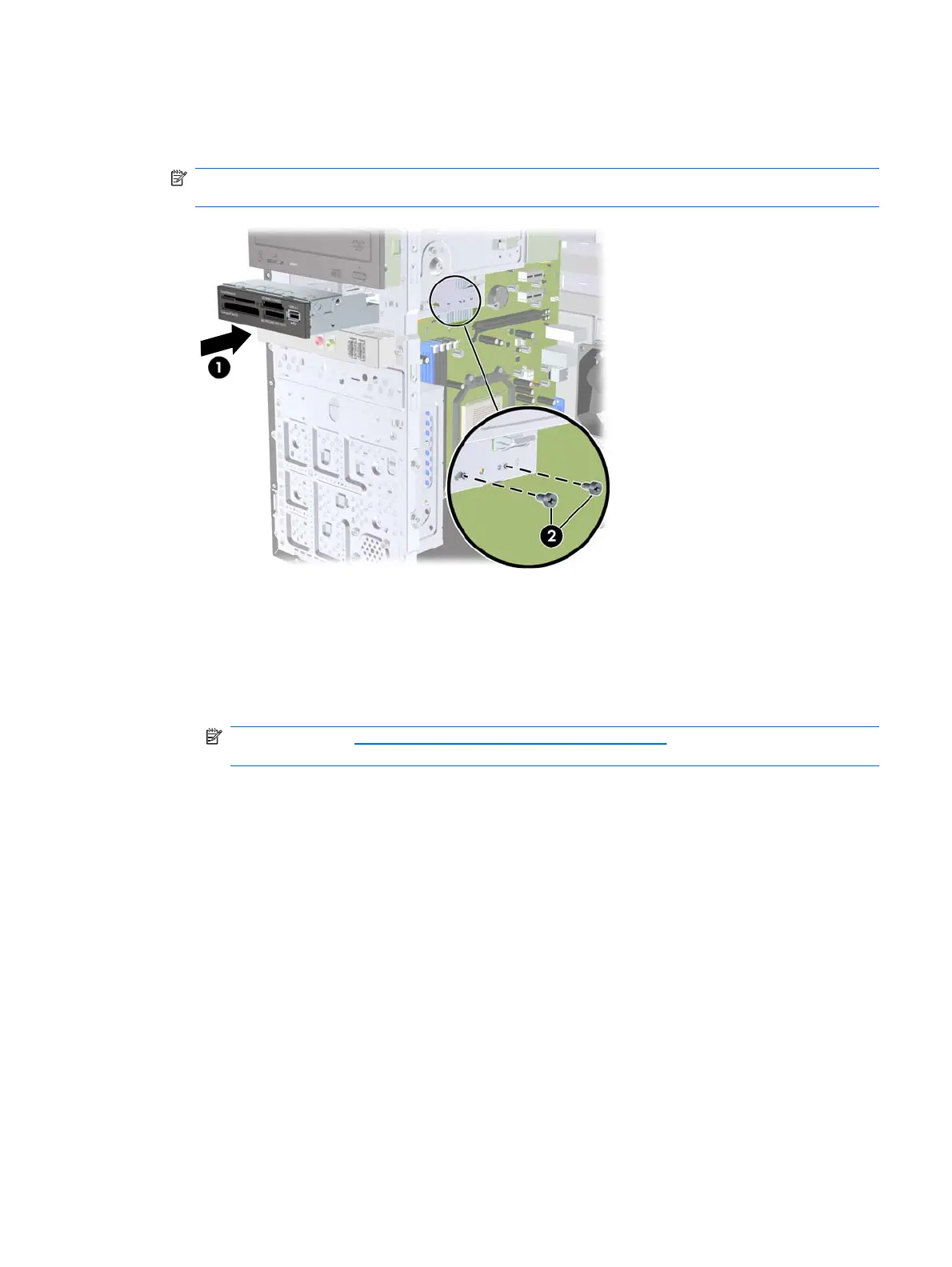

7. Slide the drive in through the front of the chassis (1) until the bezel on the drive is evenly aligned
with the computer front bezel and install the M3 metric retainer screws (2) as shown in the
illustration below.
NOTE: Extra drive retainer screws are provided on the interior of the front bezel if needed. The
M3 metric retainer screws for diskette drives or media card readers are black.
8. Connect the appropriate drive cables:
a. If installing a diskette drive, connect the power and data cables to the rear of the drive and
connect the other end of the data cable to the connector on the system board labeled FLOPPY.
b. If installing a media card reader, connect the USB cable from the media card reader to the
USB connector on the system board labeled F_USB2.
NOTE: Refer to System Board Drive Connections on page 44 for an illustration of the system
board drive connectors.
9. Replace the front bezel and access panel.
10. Lock any security devices that were disengaged when the access panel was removed.
Drives 51
