Service Reference Guide 483941-001 6–3
Removal and Replacement Procedures— Microtower (MT)/Small Form Factor (SFF) Chassis
6.2.2 Front Bezel (MT Chassis)
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel (Section 6.2.1, “Access Panel (MT Chassis)”).

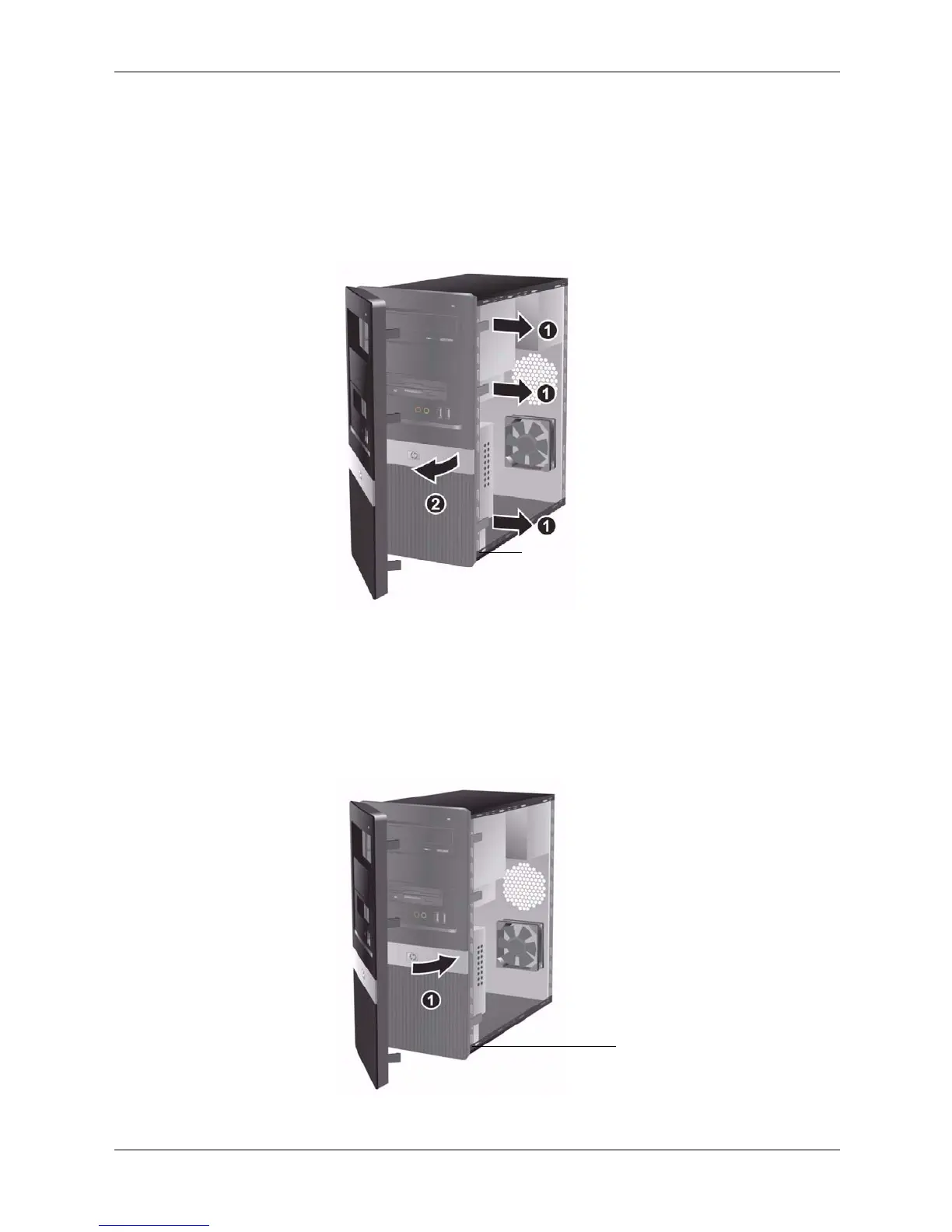

3. Press outward on the three latches on the right side of the bezel 1, then rotate the right side
of the bezel off the chassis 2 followed by the left side.
4. Continue to rotate the bezel, then push the bezel to the bottom to release the top latches from
chassis.
To reinstall the front bezel, reverse the removal procedure.
5. Insert the three hooks on the left side of the bezel into the slots on the chassis and rotate the
bezel on from left to right 1 so that it snaps in place.
