Service Reference Guide 483941-001 6–5
Removal and Replacement Procedures— Microtower (MT)/Small Form Factor (SFF) Chassis

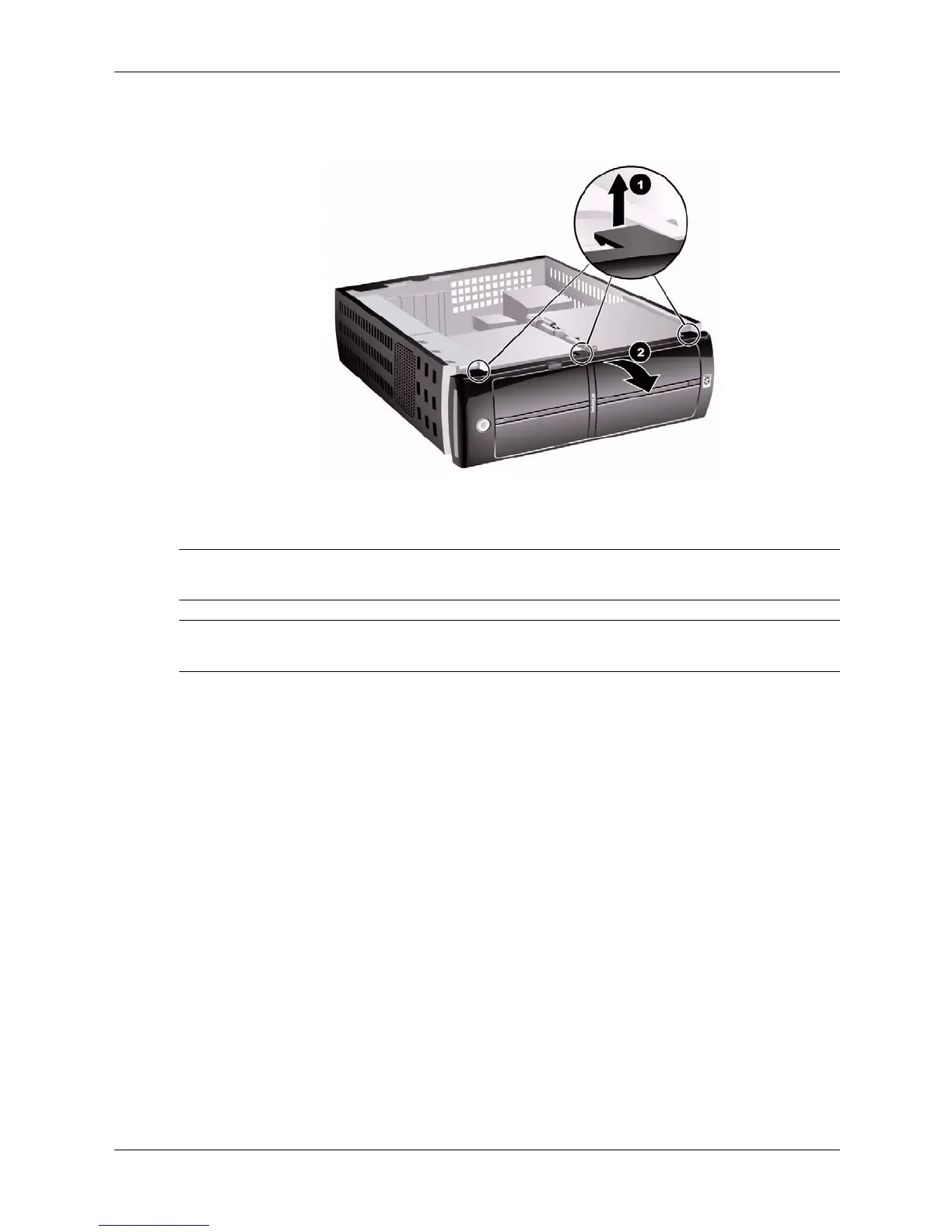

4. To remove the front bezel, gently pull up all three tabs 1 on the top of the bezel, then pull the
bezel 2 away from the chassis.
Removing the Front Bezel
To reassemble the computer, reverse the above procedure.
✎
Press down while replacing the access panel. Refer to the label on the inside of the access panel
for more information.
✎
To re-install the front bezel, insert the two bezel bottom tabs, then rotate the front bezel forward
to snap the three tabs on the top of the bezel in place.
