2. To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards
the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it
(2).

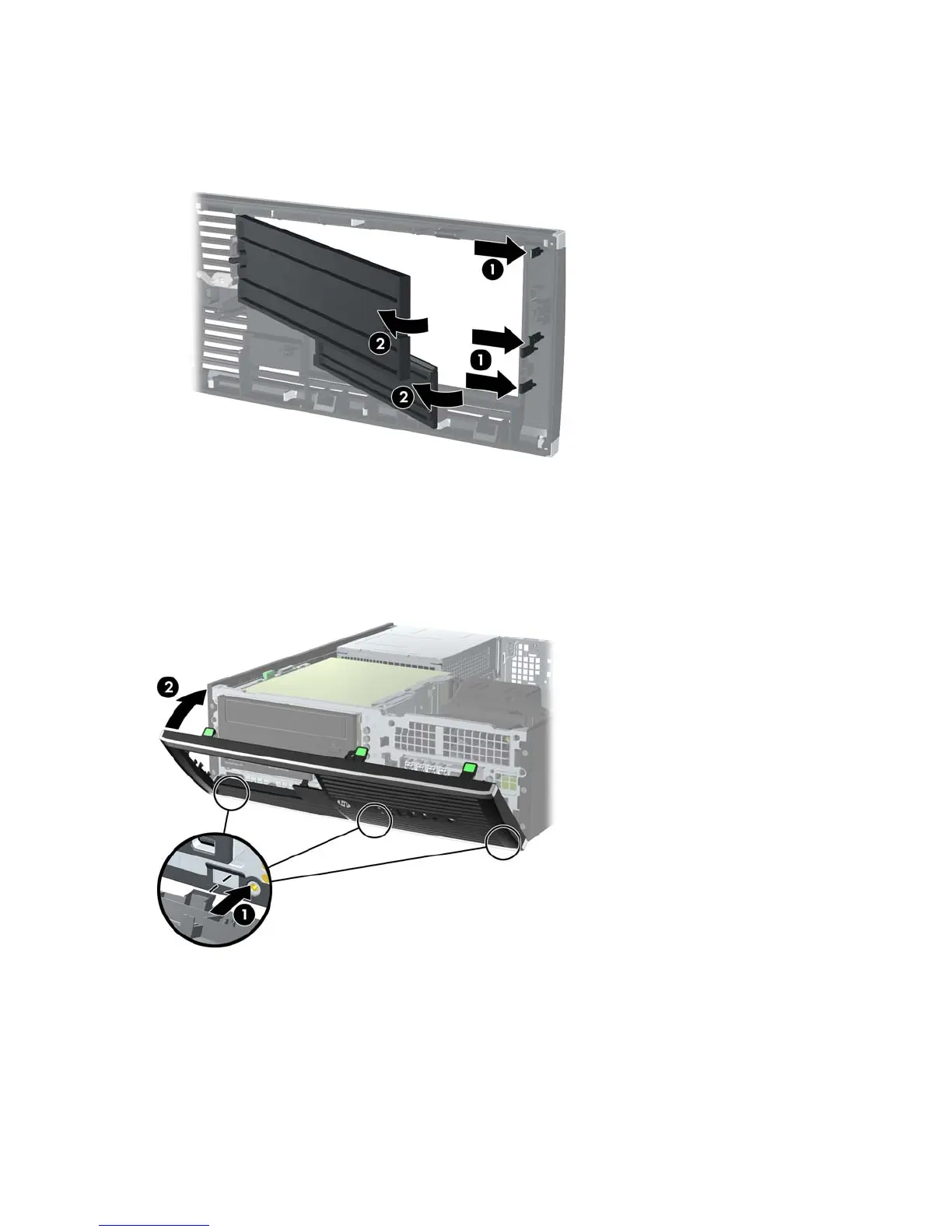

Figure 4-4 Removing a Bezel Blank
Replacing the Front Bezel
Insert the three hooks on the bottom side of the bezel into the rectangular holes on the chassis (1)
then rotate the top side of the bezel onto the chassis (2) and snap it into place.
Figure 4-5 Replacing the Front Bezel
94 Chapter 4 Small Form Factor (SFF) Hardware Upgrades
