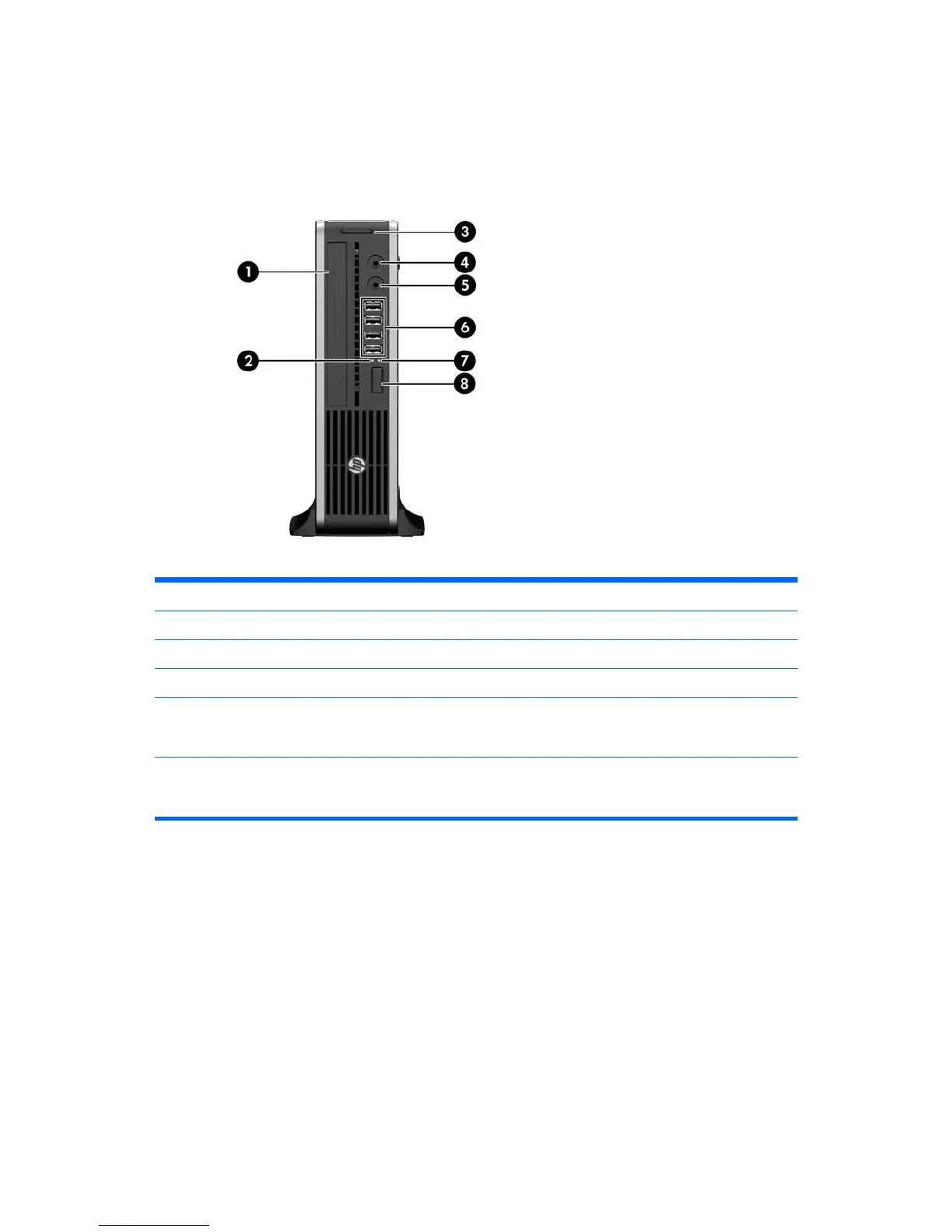

Ultra-Slim Desktop (USDT) Front Panel Components

Drive configuration may vary by model. Some models have a bezel blank covering the optical drive

bay.

Figure 1-7 Front Panel Components

Table 1-4 Front Panel Components

1 Optical Drive 5 Microphone/Headphone Connector

2 Power On Light 6 USB (Universal Serial Bus) Ports

3 SD Media Card Reader (optional) 7 Hard Drive Activity Light

4 Headphone Connector 8 Dual-State Power Button

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if

you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the

connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with

the computer and it is displaying a diagnostic code. Refer to the Maintenance and Service Guide to interpret the

code.
