2. Disconnect the drive cables from the rear of the drive, or, if you are removing a media card
reader, disconnect the USB cable from the system board as indicated in the following illustration.

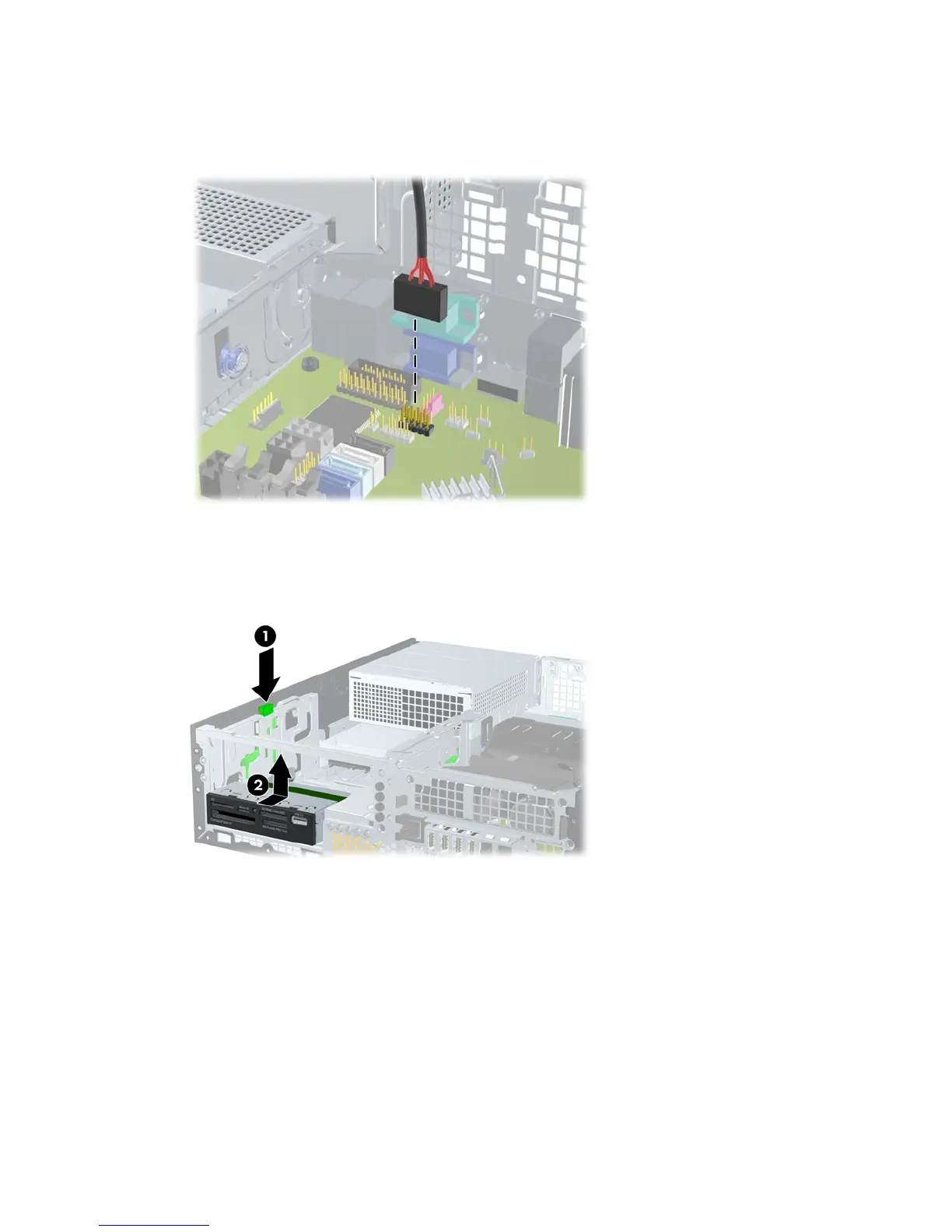

Figure 4-27 Disconnecting the Media Card Reader USB Cable
3. Press down on the green drive retainer button located on the left side of the drive to disengage
the drive from the drive cage (1). While pressing the drive retainer button, slide the drive back
until it stops, then lift it up and out of the drive cage (2).
Figure 4-28 Removing a 3.5-inch Drive (Media Card Reader Shown)
114 Chapter 4 Small Form Factor (SFF) Hardware Upgrades
