9. Lift the hard drive carrier straight up and out of the chassis.

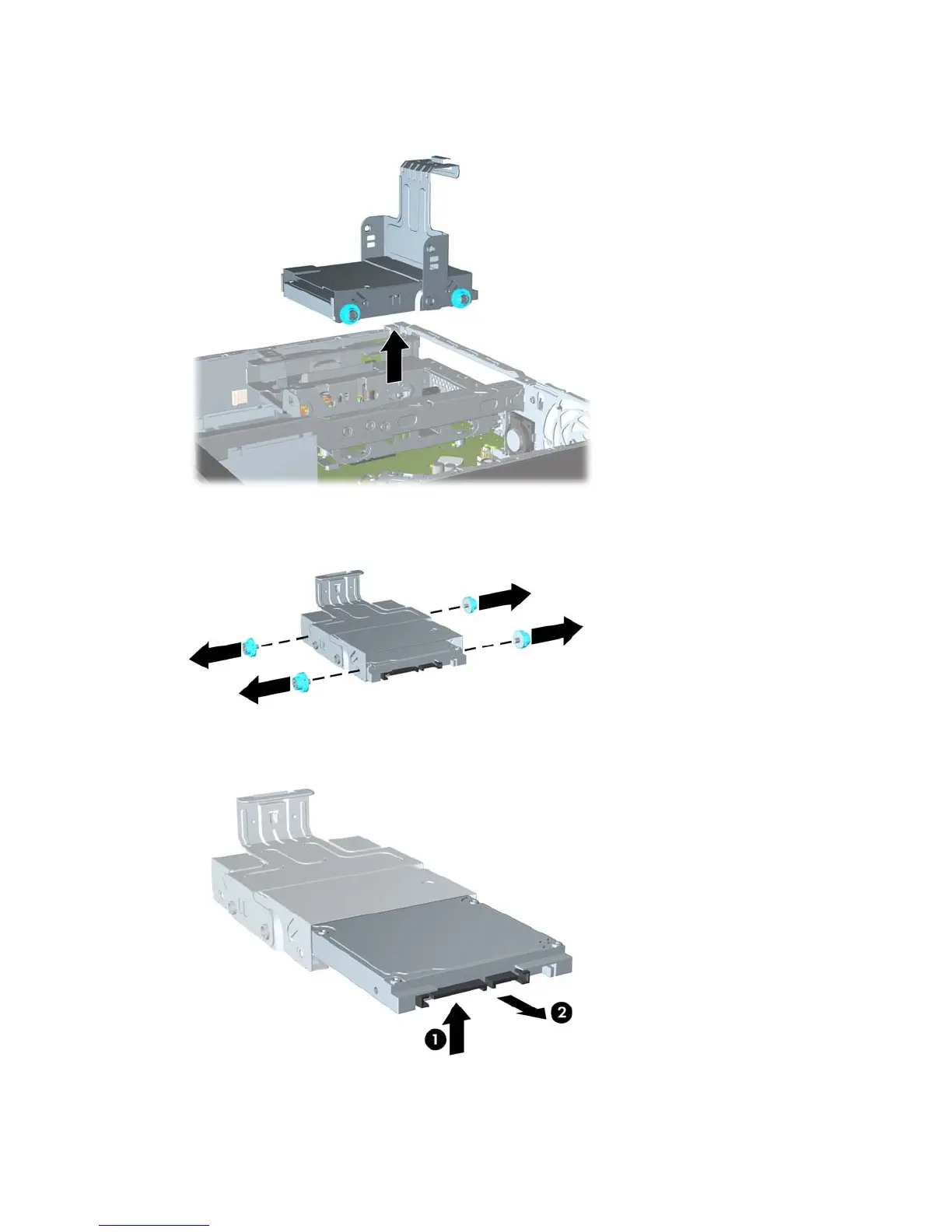

Figure 5-16 Removing the Hard Drive Carrier
10. Remove the four guide screws from the sides of the hard drive carrier.
Figure 5-17 Removing the Guide Screws
11. Lift the hard drive up to the top of the carrier (1) and slide the drive out of the carrier (2).
Figure 5-18 Removing the Hard Drive from the Carrier
144 Chapter 5 Ultra-Slim Desktop (USDT) Hardware Upgrades
