6. Screw the lock to the chassis in the thumbscrew hole using the screw provided.

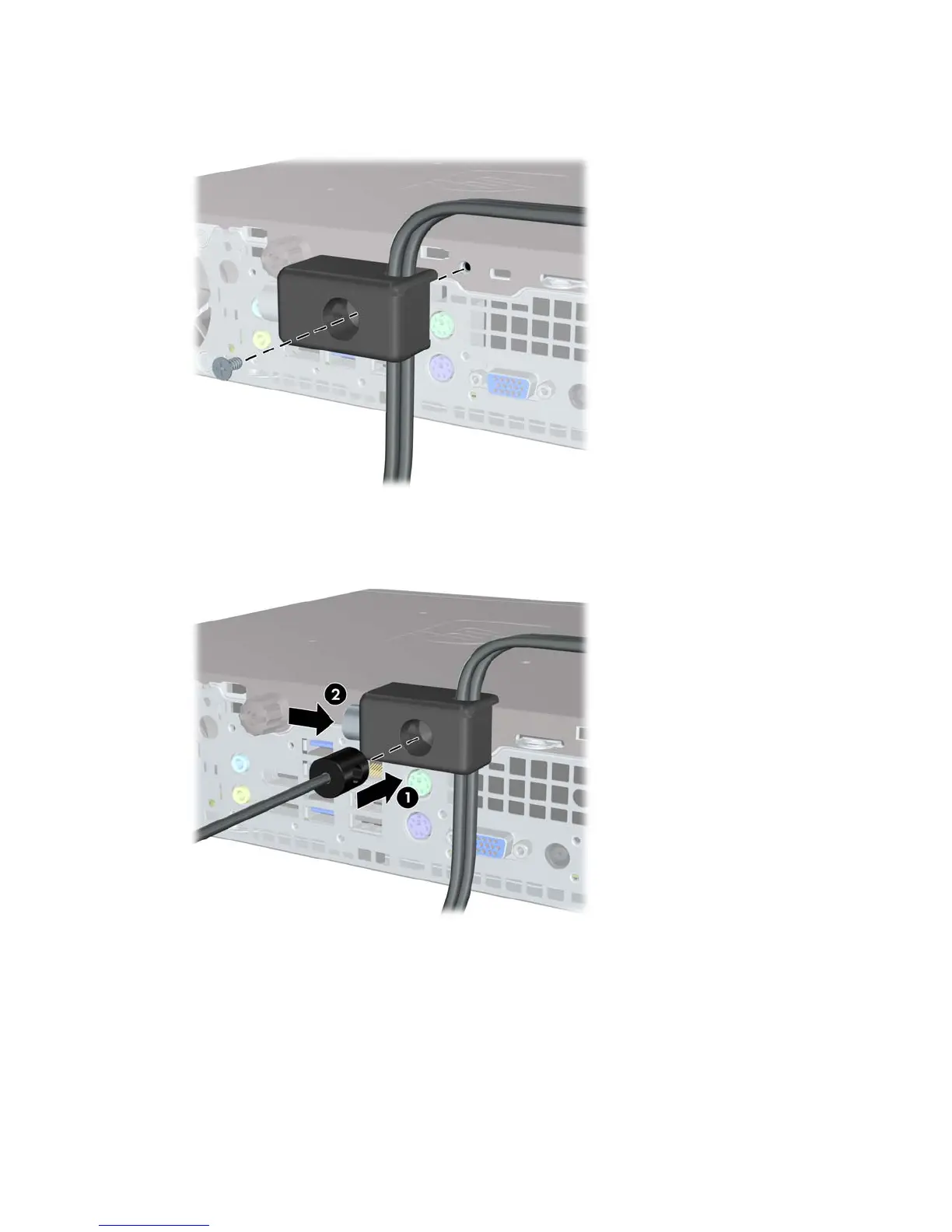

Figure 5-32 Attaching the Lock to the Chassis
7. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.
Figure 5-33 Engaging the Lock
152 Chapter 5 Ultra-Slim Desktop (USDT) Hardware Upgrades
