HP Compaq Elite 8300 Series User Manual

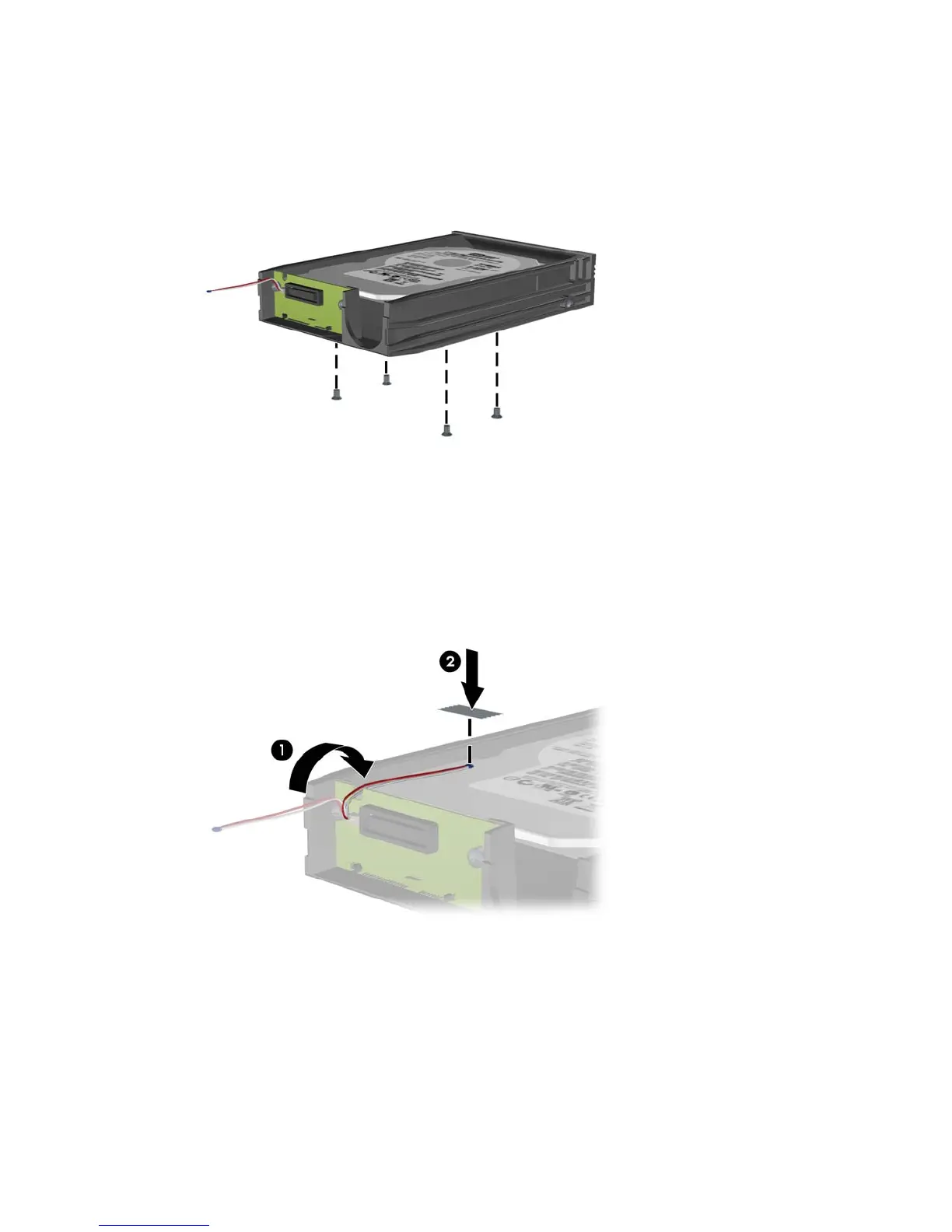

7. Replace the four screws in the bottom of the carrier to hold the drive securely in place.
Figure B-6 Replacing the Security Screws
8. Place the thermal sensor on top of the hard drive in a position that does not cover the label (1)
and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).
Figure B-7 Replacing the Thermal Sensor
161
