Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket
(two on each side of the bracket).

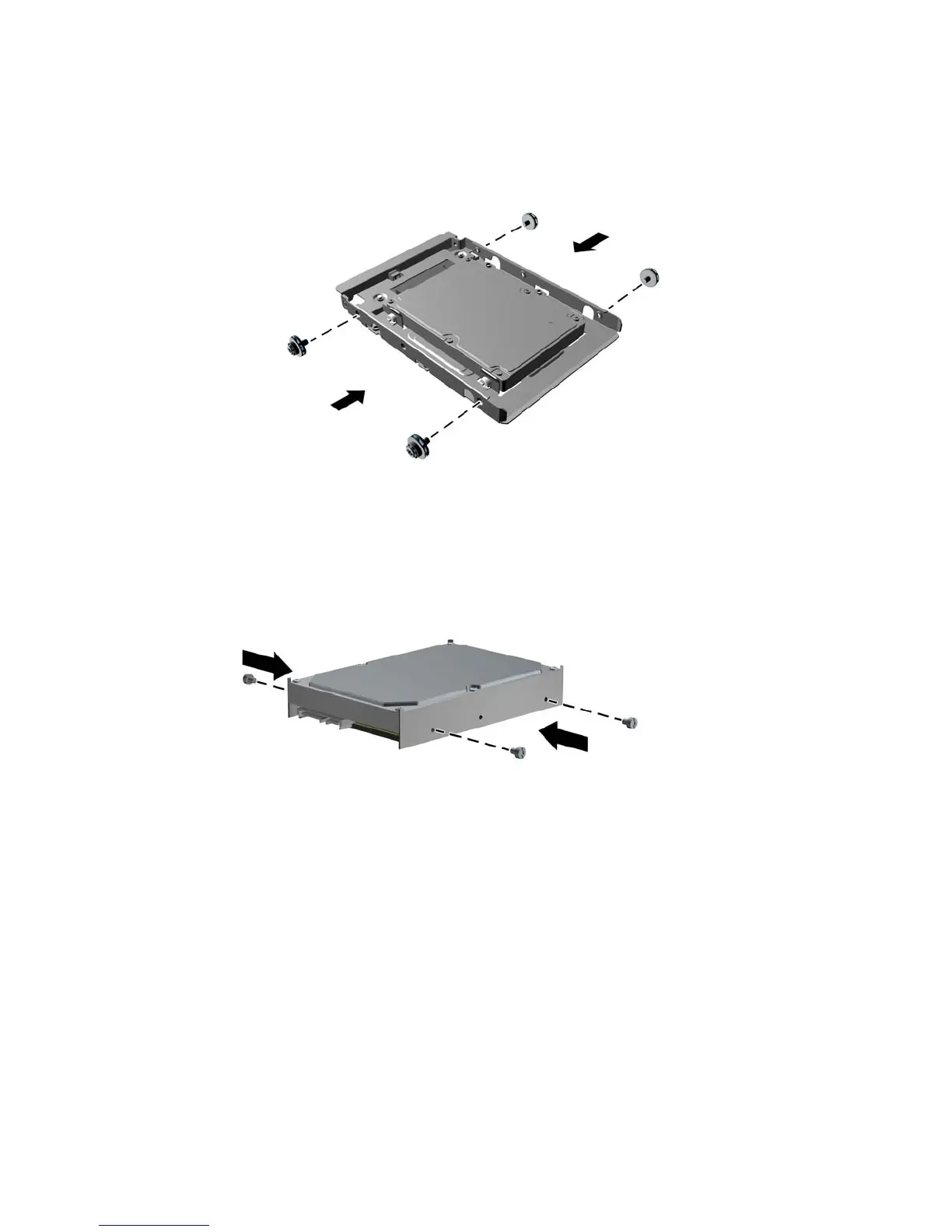

Figure 2-28 Installing Isolation Mounting Guide Screws in the Adapter Bracket
●
If you are installing the drive in the upper bay (bay 4), install three standard 6-32 silver
guide screws (two on the right side and one on the left side in the screw hole closest to the
power and data connectors).
Figure 2-29 Installing Standard Guide Screws
Installing Drives 43
