HP Compaq Elite 8300 Series User Manual

3. Slide the security cable through the hole in the cable lock on the rear of the monitor.

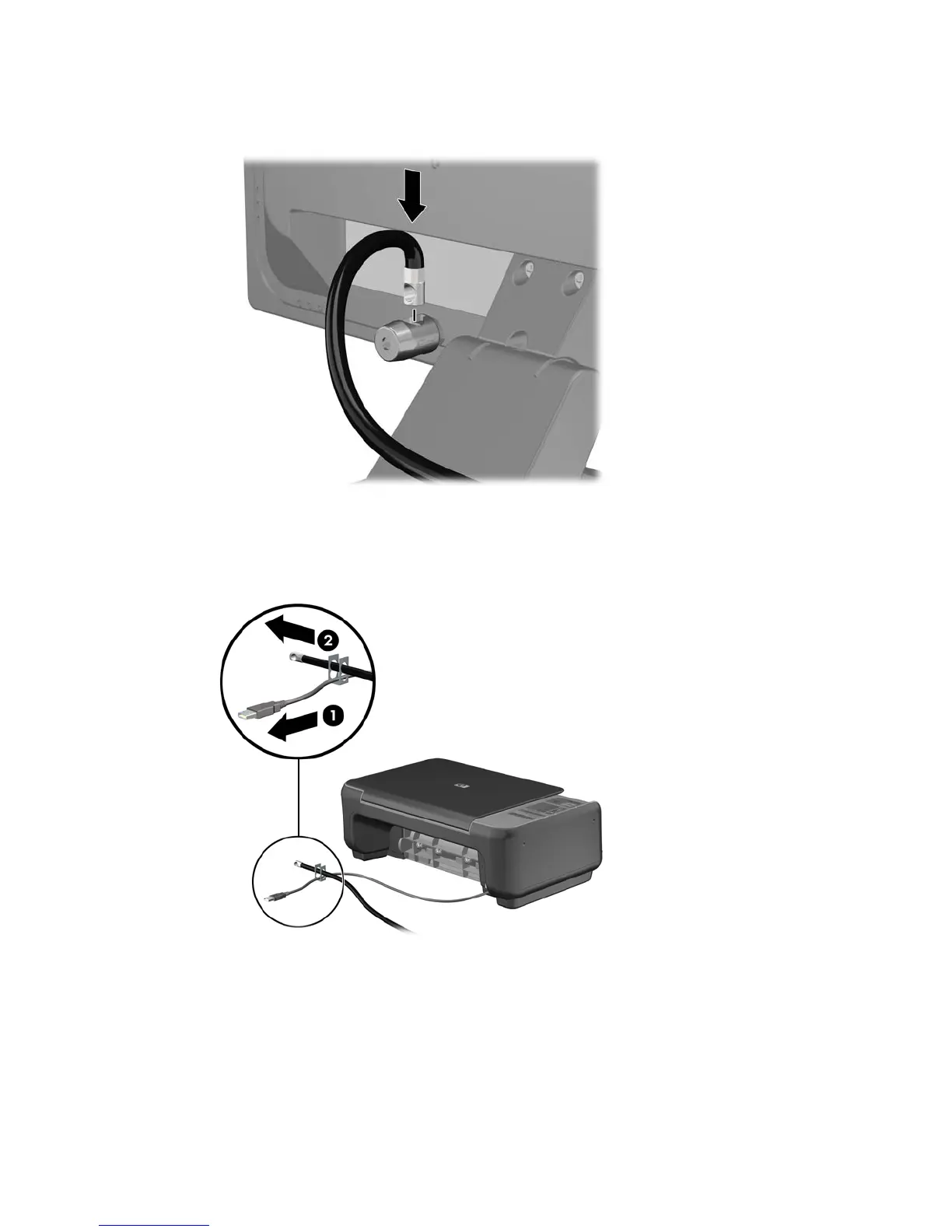

Figure 3-36 Securing the Monitor
4. Use the bracket provided in the kit to secure other peripheral devices by laying the device cable
across the center of the bracket (1) and inserting the security cable through one of the two holes
in the bracket (2). Use the hole in the bracket that best secures the peripheral device cable.
Figure 3-37 Securing Peripheral Devices (Printer Shown)
Installing a Security Lock 85

HP Compaq Elite 8300 Series Specifications

General

Chipset	Intel Q77 Express
Memory	Up to 32 GB DDR3
Processor	Intel Core i3/i5/i7
Storage	SSD
Graphics	Integrated Intel HD Graphics
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows 7, Windows 8, FreeDOS
Form Factor	Small Form Factor (SFF)
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	USB 2.0, USB 3.0, DisplayPort, VGA, Serial, PS/2, Audio
