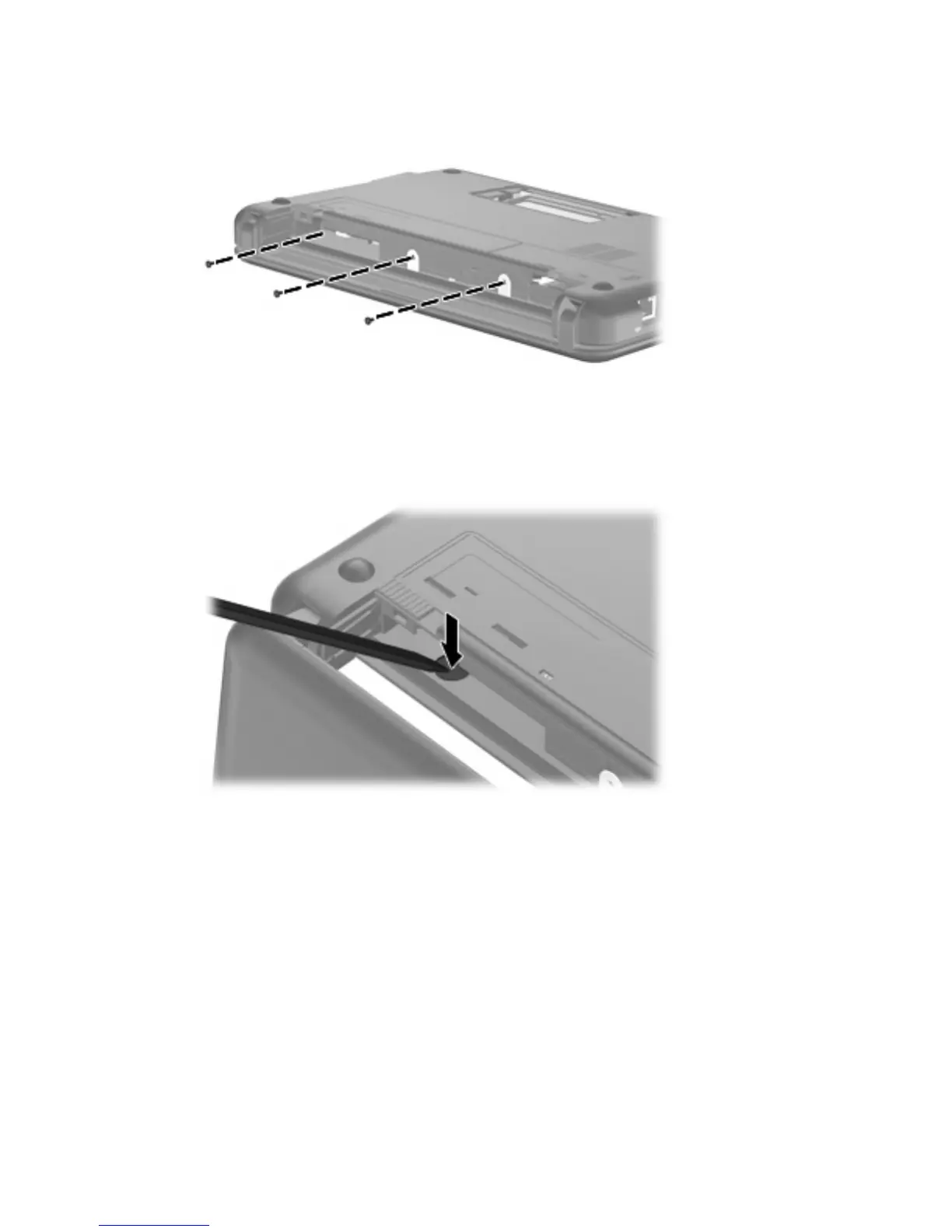

Remove the keyboard:

1. Remove the 3 Phillips SP2.0×3.0 screws that secure the keyboard to the device.

2. Turn the device right-side up, and then open the display as far as possible.

3. Turn the device upside down, and locate the keyboard release access on the bottom of the

computer, inside the battery bay.

4. Insert a flexible tool into the opening, and then press inward to release the keyboard.

5. Turn the device right-side up, and then lift up on the top and left edges (1) of the keyboard until the

keyboard releases completely.

Component replacement procedures 51
