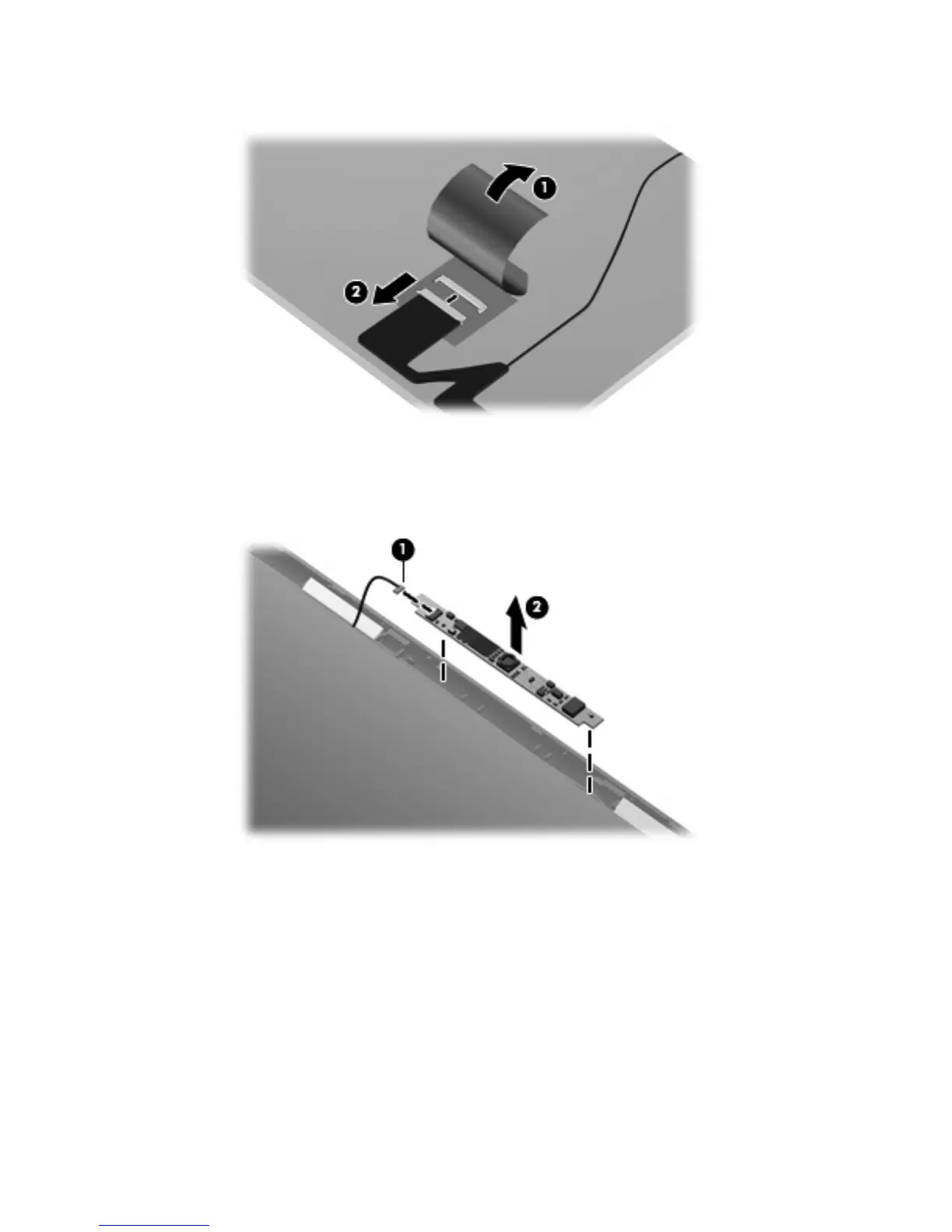

b. Disconnect the display panel cable (2).
10. If it is necessary to replace the webcam module, perform the following steps:
a. Disconnect the webcam cable (1) from the webcam.
b. Remove the webcam (2).
11. If it is necessary to replace the microphone receiver, perform the following steps:
a. Release the microphone receiver from the clip (1) that secures it to the display enclosure.
Component replacement procedures 81
