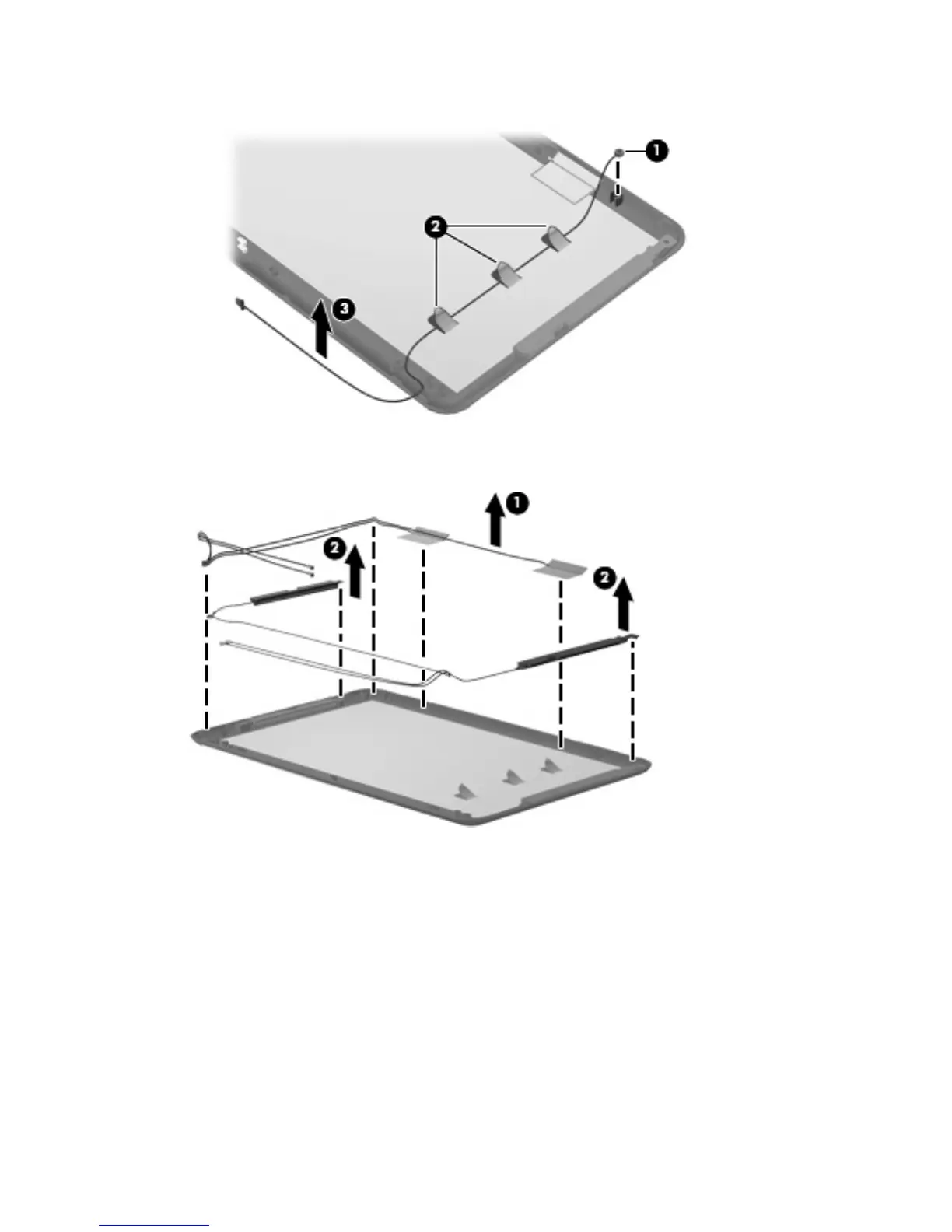

b. Pull the receiver through the tabs (2), and remove the microphone receiver (3).
12. If it is necessary to replace the wireless antenna transceivers and cables, detach the cables from
the adhesive (1) that secures them to the display enclosure, and then remove the cables (2).
Reverse this procedure to reassemble and install the display assembly.
82 Chapter 4 Removal and replacement procedures
