Removal and Replacement Procedures
Maintenance and Service Guide 5–23

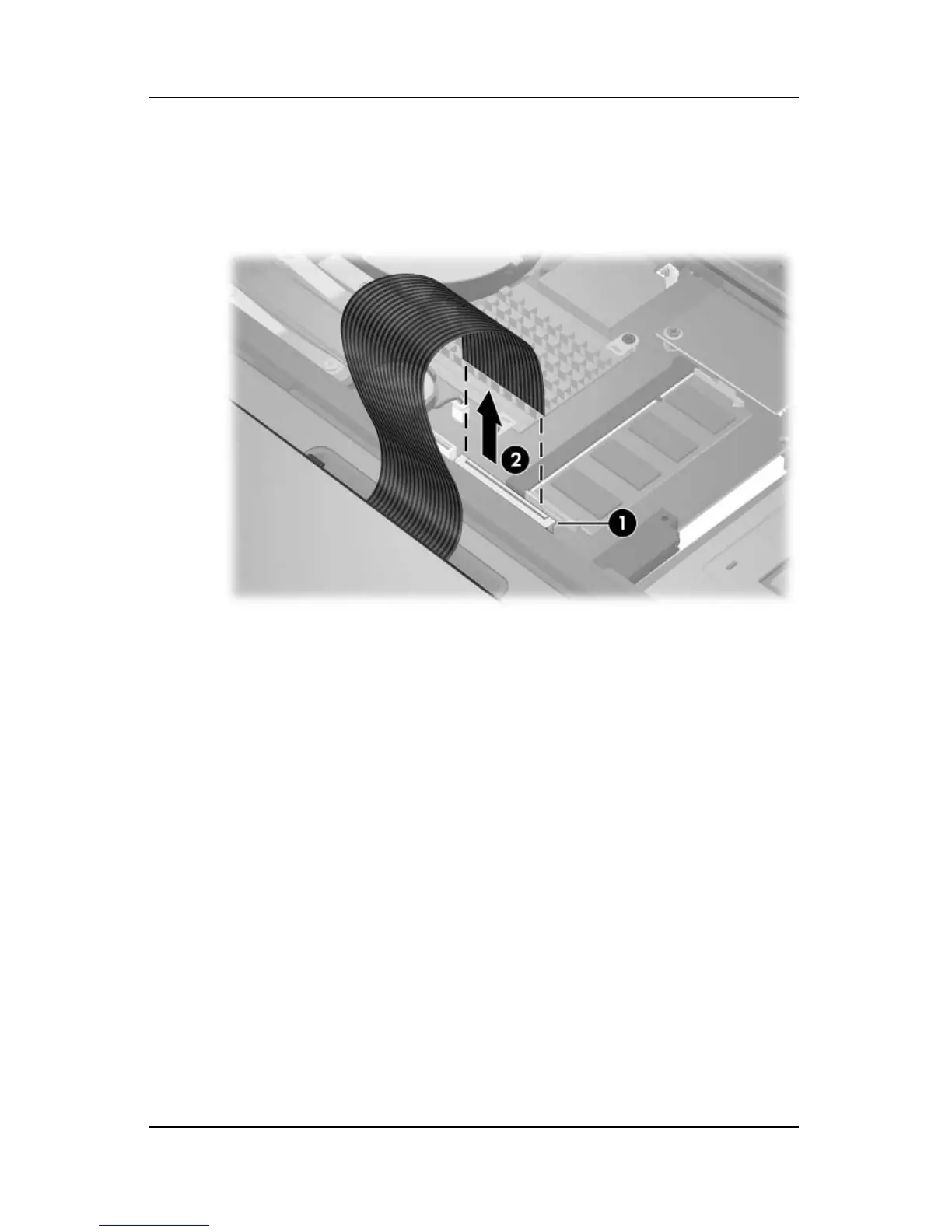

8. Release the zero insertion force (ZIF) connector 1 to which
the keyboard cable is attached and disconnect the keyboard
cable 2.
Disconnecting the Keyboard Cable
9. Remove the keyboard.
Reverse the above procedure to install the keyboard.
