HP Compaq nx6110 User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 6–21
4. Turn the computer display-side up with the front toward you.
5. Open the computer as far as possible.

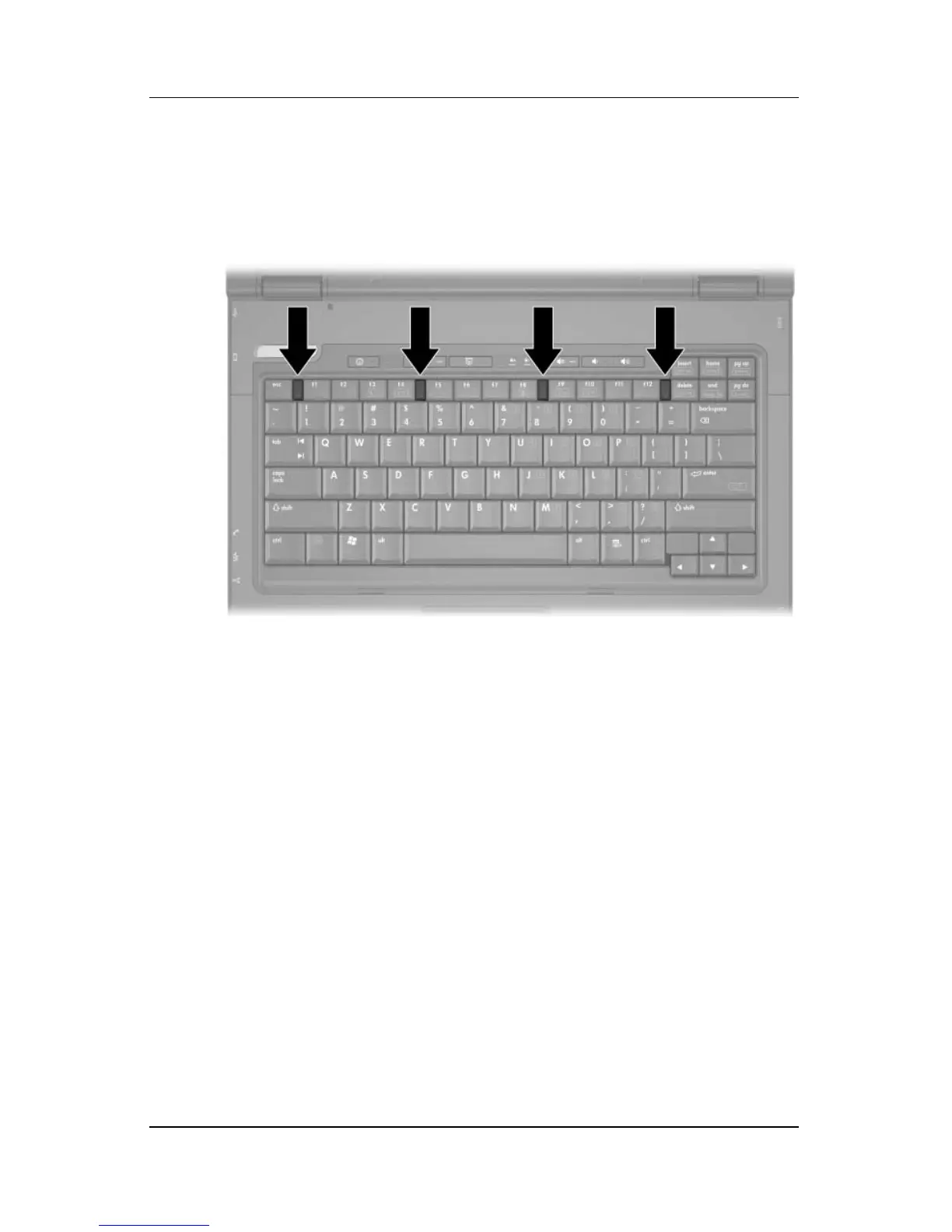

6. Slide the 4 keyboard retaining latches toward you.
Releasing the Keyboard Latches

HP Compaq nx6110 Specifications

General

Storage	40 GB to 80 GB HDD
Optical Drive	DVD-ROM or DVD/CD-RW combo
Battery	6-cell Lithium-Ion
Battery Life	Up to 4 hours
Weight	2.7 kg (6.0 lbs)
Processor	Intel Pentium M or Intel Celeron M
RAM	Up to 2 GB DDR SDRAM
Display	15.0-inch XGA TFT
Graphics	Intel GMA 900
Operating System	Windows XP Professional
Networking	10/100 Ethernet
Ports	USB 2.0, VGA, headphone, microphone, RJ-11, RJ-45
Expansion Slots	1 x Type I/II PC Card
