Removal and Replacement Procedures
Maintenance and Service Guide 6ā31

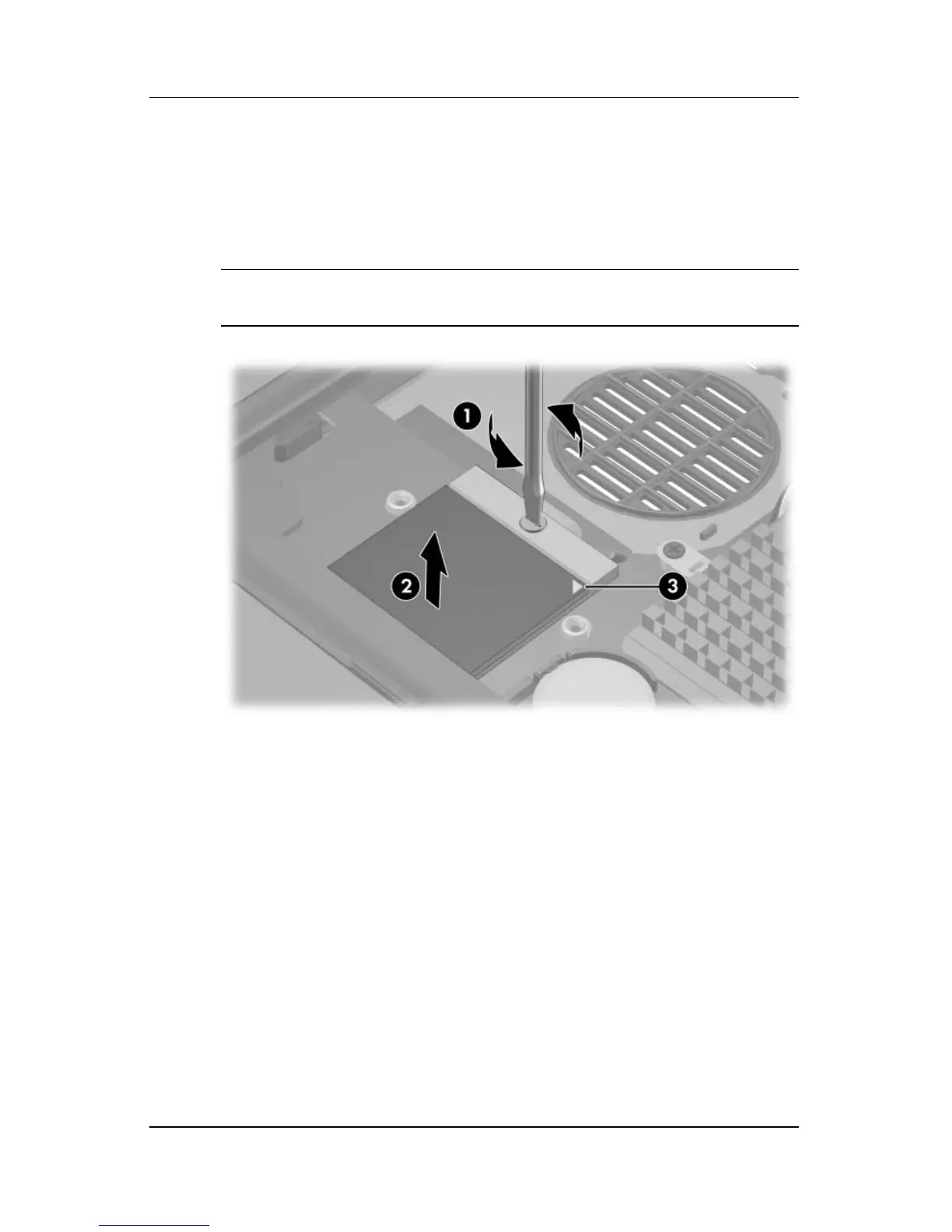

5. Use a flat-bladed screwdriver to turn the processor locking
screw 1 one-quarter turn counterclockwise until you hear a
click.
6. Lift the processor 2 straight up and remove it.
ā
The gold triangle 3 on the processor should be aligned in the
front right corner when you install the processor.
Removing the Processor
Reverse the above procedure to install the processor.
