Removal and Replacement Procedures
Maintenance and Service Guide 6–41
4. Turn the computer right-side up with the front toward you.
5. Disconnect the RTC battery cable from the system board.

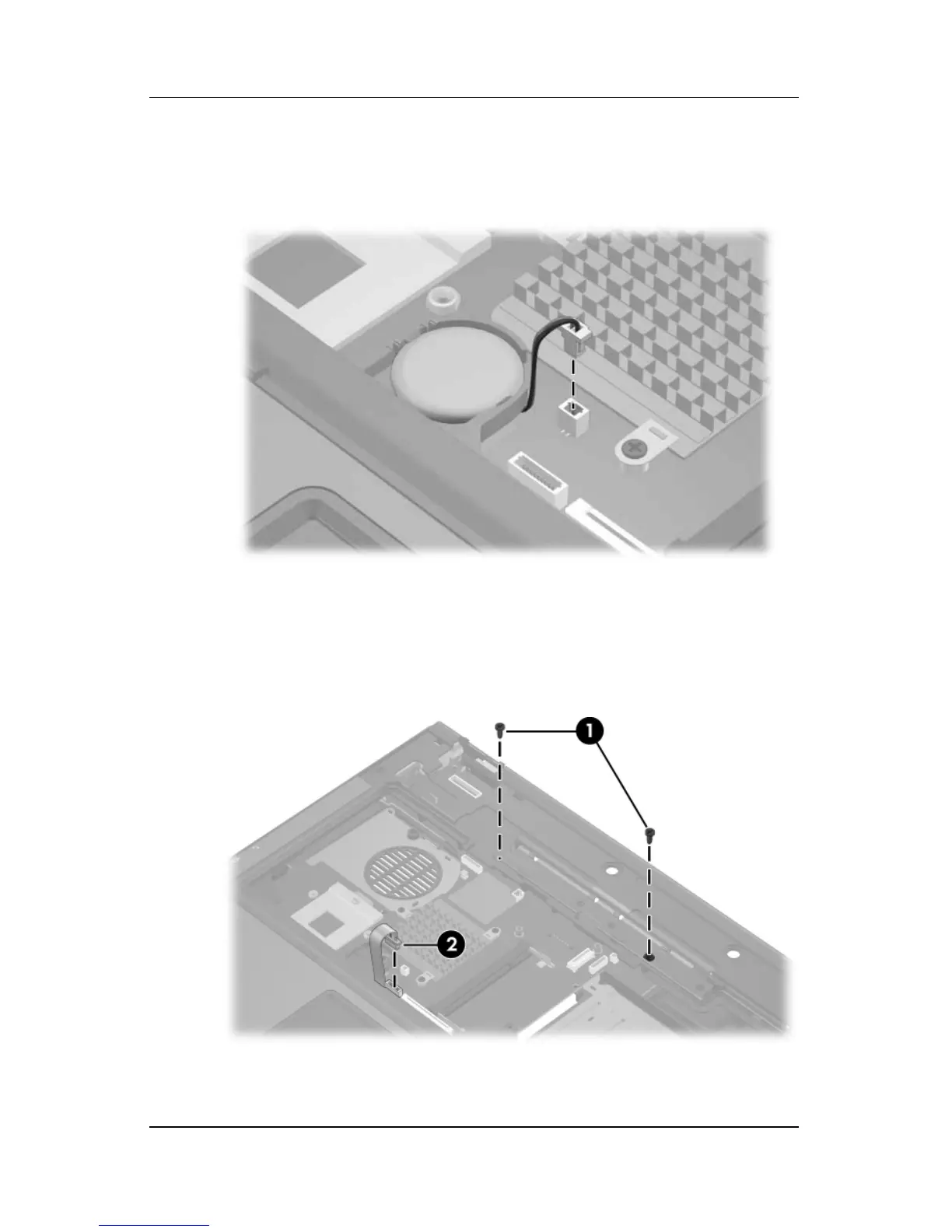

Disconnecting the RTC Battery Cable
6. Remove the 2 Torx8 T8M2.0×9.0 screws 1 that secure the
top cover to the computer.
7. Disconnect the TouchPad cable 2 from the system board.
Removing the Top Cover Screws, Part 2
