6–52 Maintenance and Service Guide
Removal and Replacement Procedures
2. Disconnect the serial connector cable 1 and the Bluetooth
cable 2 from the system board.
3. Remove the Torx8 T8M2.0×4.0 screw 3 that secures the
system board to the base enclosure next to the RJ-11
connector.
✎
Step 4 applies only to full-featured models.
4. Remove the 2 HM5.0×9.0 screw locks 4 on each side of the
parallel connector.
5. Remove the 2 HM5.0×9.0 screw locks 5 on each side of
the
external monitor connectors.

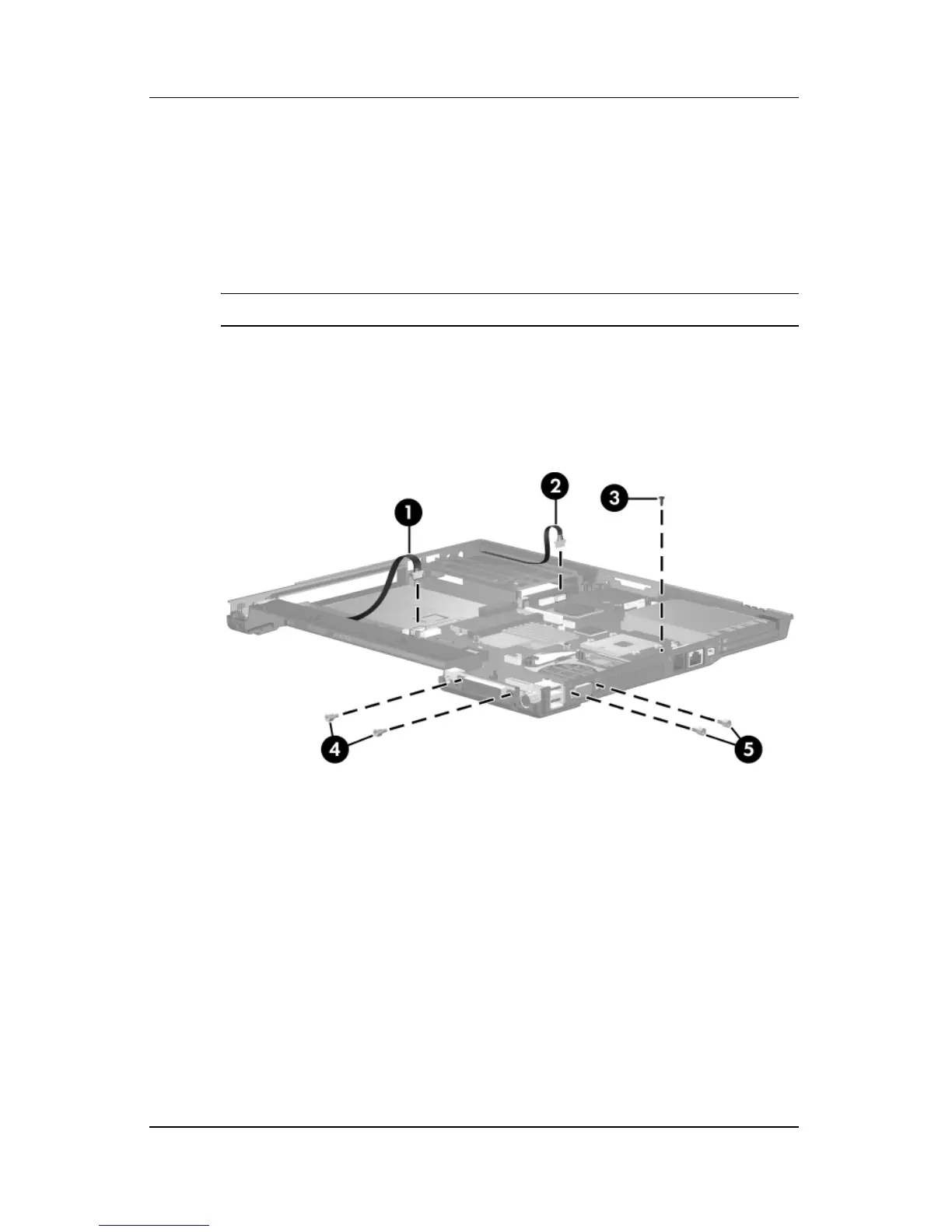

Removing the System Board Screws and Screw Locks
