6–56 Maintenance and Service Guide
Removal and Replacement Procedures
2. Remove the 2 HM5.0×9.0 screw locks 1 on each side of the
serial connector.
3. Lift the serial connector module and cable 2 out of the base
enclosure.
4. Disconnect the serial connector module cable 3 from the
system board.

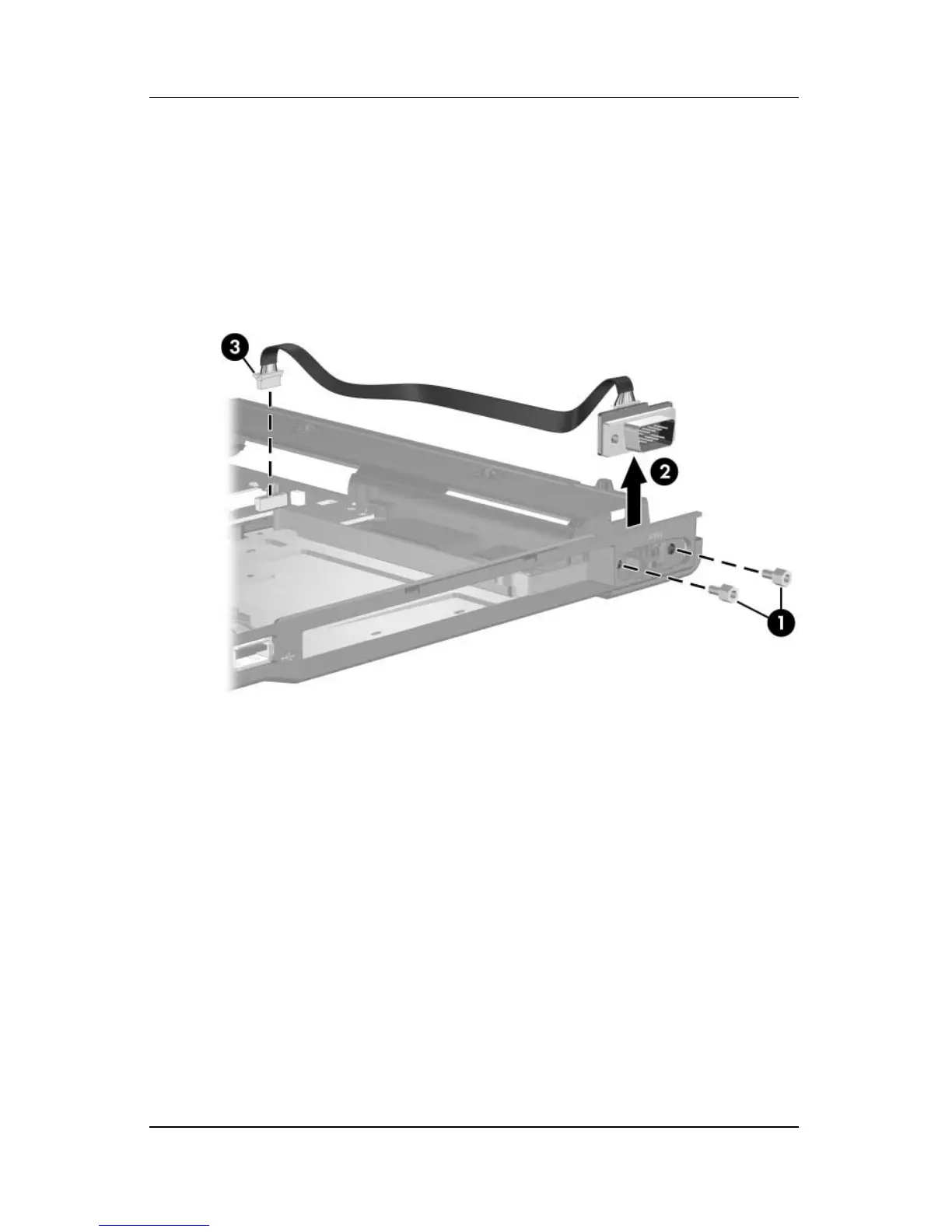

Removing the Serial Connector Module
