HP Compaq nx6110 - Page 189

Connector Pin Assignments
Maintenance and Service Guide A–5

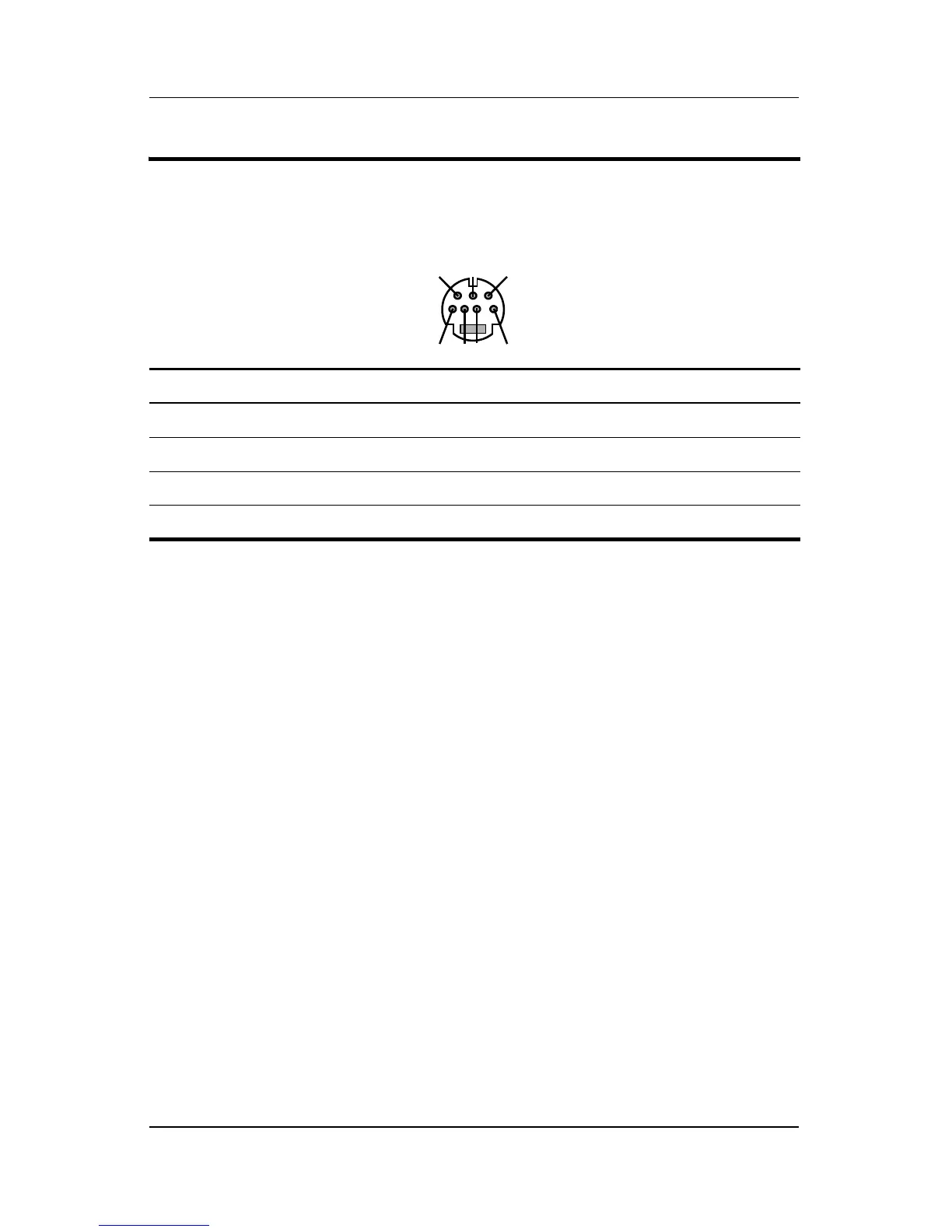

Table A-6
S-Video-Out
Pin Signal Pin Signal
1 S-VHS color (C) signal 5 TV-CD
2 Composite video signal 6 S-VHS intensity ground
3 S-VHS intensity (Y) signal 7 Composite video ground
4 S-VHS color ground
123
456 7
