HP Compaq nx6110 User Manual

D–4 Maintenance and Service Guide
Display Component Recycling
2. Lift up and out on the left and right inside edges 1 and the
top and bottom inside edges 2 of the display bezel until
the
bezel disengages from the display assembly.
3. Remove the display bezel 3.

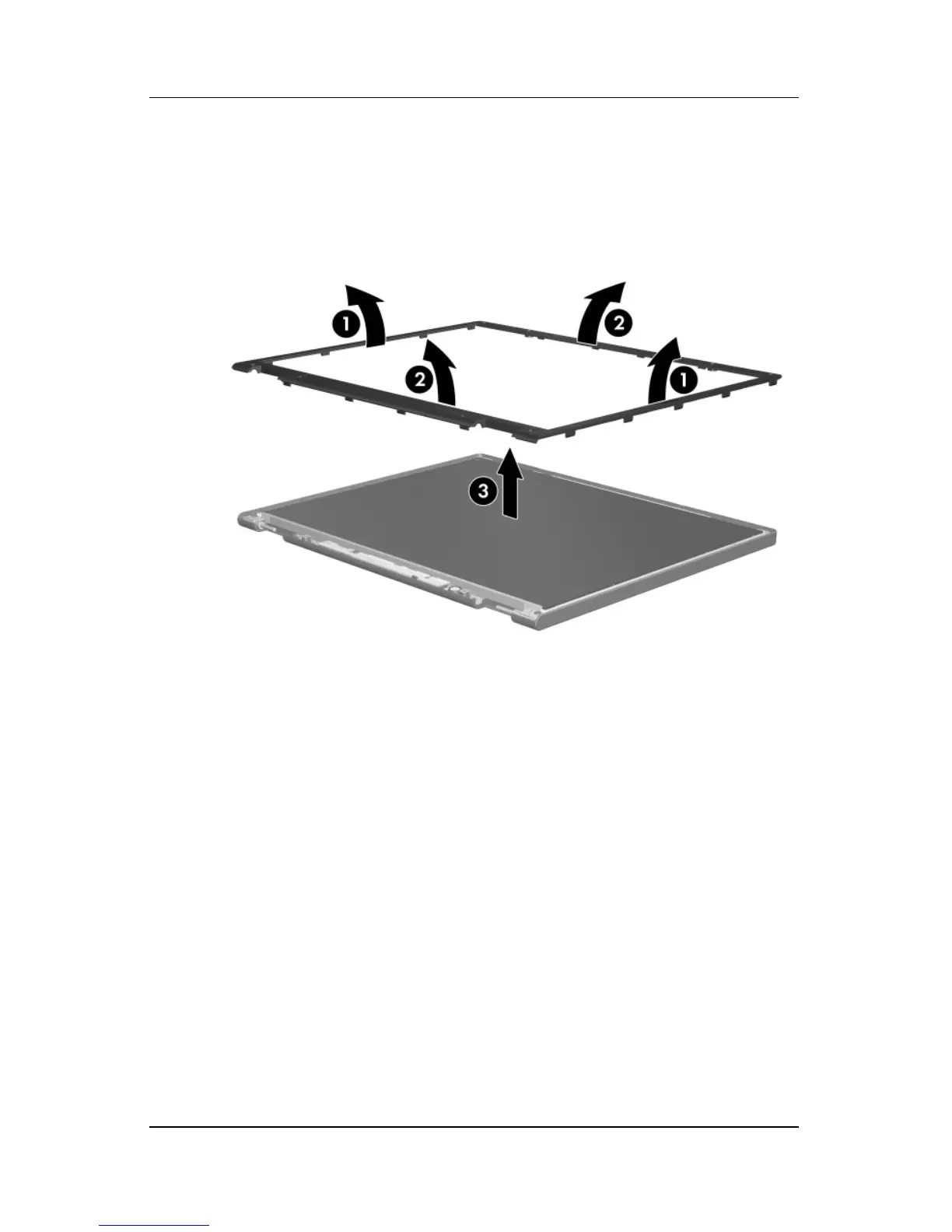

Removing the Display Bezel

HP Compaq nx6110 Specifications

General

Storage	40 GB to 80 GB HDD
Optical Drive	DVD-ROM or DVD/CD-RW combo
Battery	6-cell Lithium-Ion
Battery Life	Up to 4 hours
Weight	2.7 kg (6.0 lbs)
Processor	Intel Pentium M or Intel Celeron M
RAM	Up to 2 GB DDR SDRAM
Display	15.0-inch XGA TFT
Graphics	Intel GMA 900
Operating System	Windows XP Professional
Networking	10/100 Ethernet
Ports	USB 2.0, VGA, headphone, microphone, RJ-11, RJ-45
Expansion Slots	1 x Type I/II PC Card
