5–38 Maintenance and Service Guide
Removal and Replacement Procedures
5. Disconnect the display cable 1 from the system board.
6. Remove the wireless antenna cables from the Mini PCI
compartment and the top cover clips 2.
7. Remove the 2 T8M2.0×9.0 screws 3 that secure the display
assembly to the notebook.

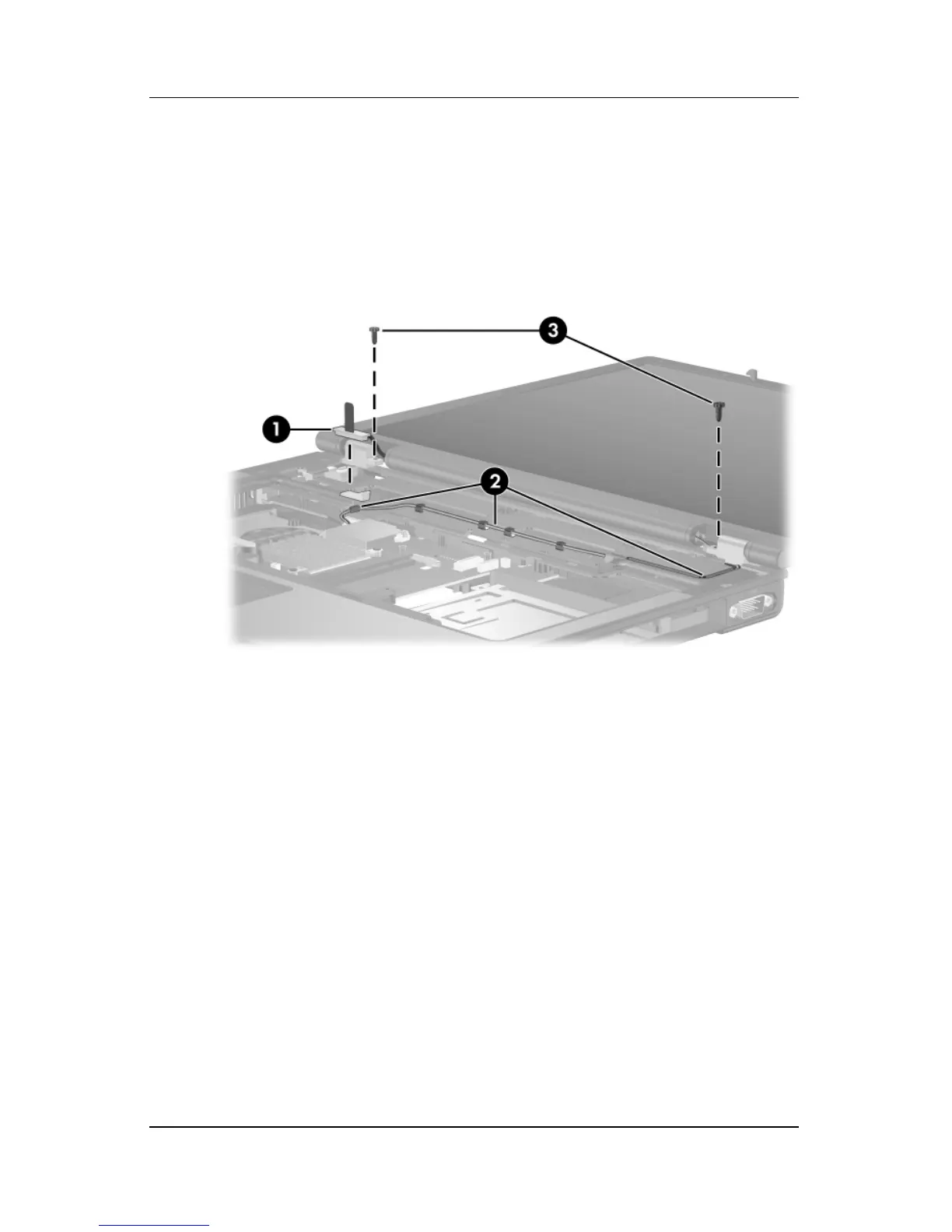

Disconnecting the Display Cable and Removing the
Display Screws
