C–4 Maintenance and Service Guide

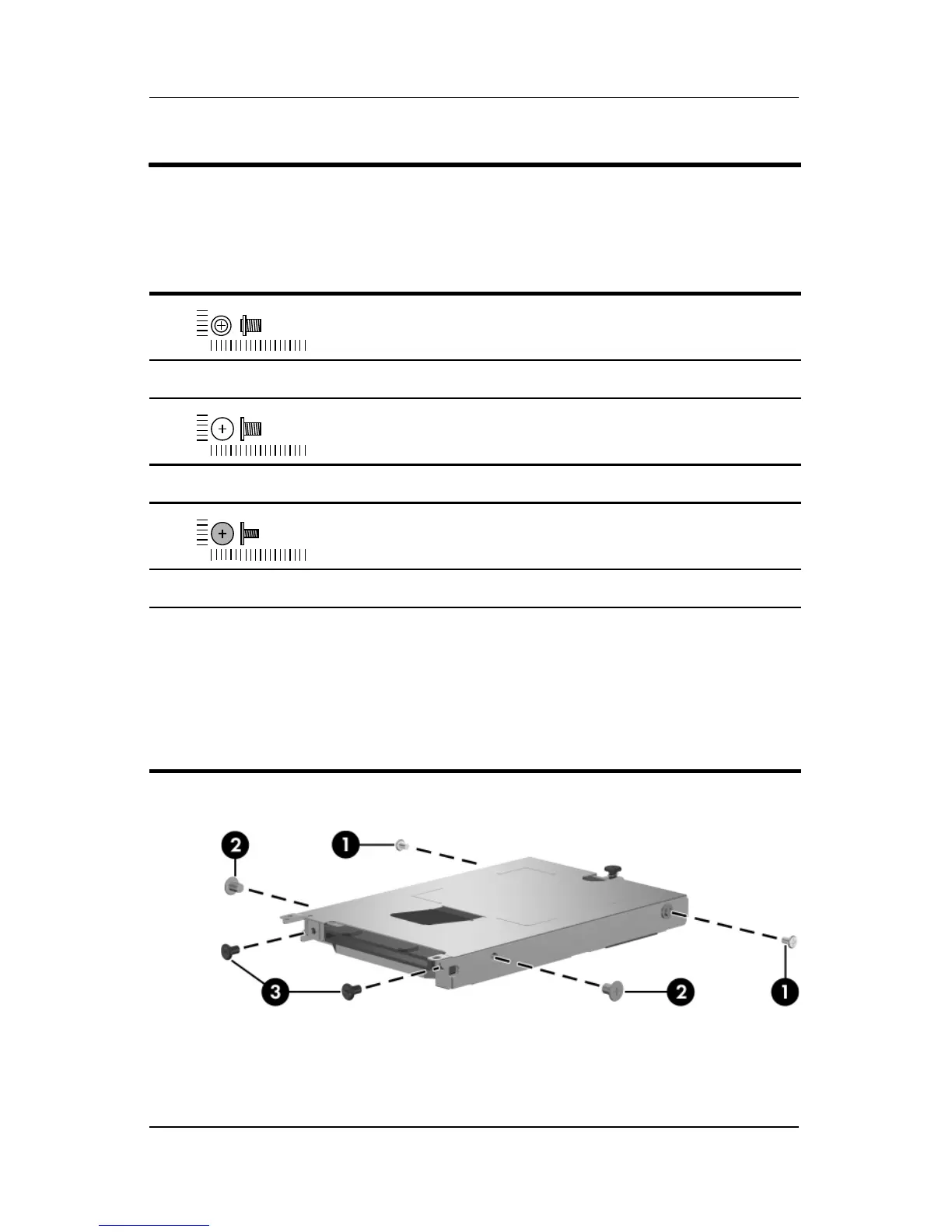

Screw Listing
Phillips M2.5×4.0 Shoulder Screw, Phillips PM2.5×4.0 Screw,
and Phillips 1.5×3.5 Screw Locations
Table C-3
Phillips PM2.5×4.0 Shoulder Screw, Phillips PM2.5×4.0 Screw,
and Phillips 1.5×3.5 Screw
Color Qty. Length Thread
Head
Width
Silver 2 4.0 mm 2.5 mm 4.0 mm
Color Qty. Length Thread
Head
Width
Silver 2 4.0 mm 2.5 mm 4.5 mm
Color Qty. Length Thread
Head
Width
Black 2 3.5 mm 1.5 mm 4.5 mm
Where used:
1 2 screws that secure the hard drive frame to the hard drive
(documented in Section 5.3)
2 2 screws that secure the hard drive frame to the hard drive
(documented in Section 5.3)
3 2 screws that secure the hard drive frame to the hard drive
(documented in Section 5.3)
mm
mm
mm
