Removal and Replacement Procedures
Maintenance and Service Guide 5–9

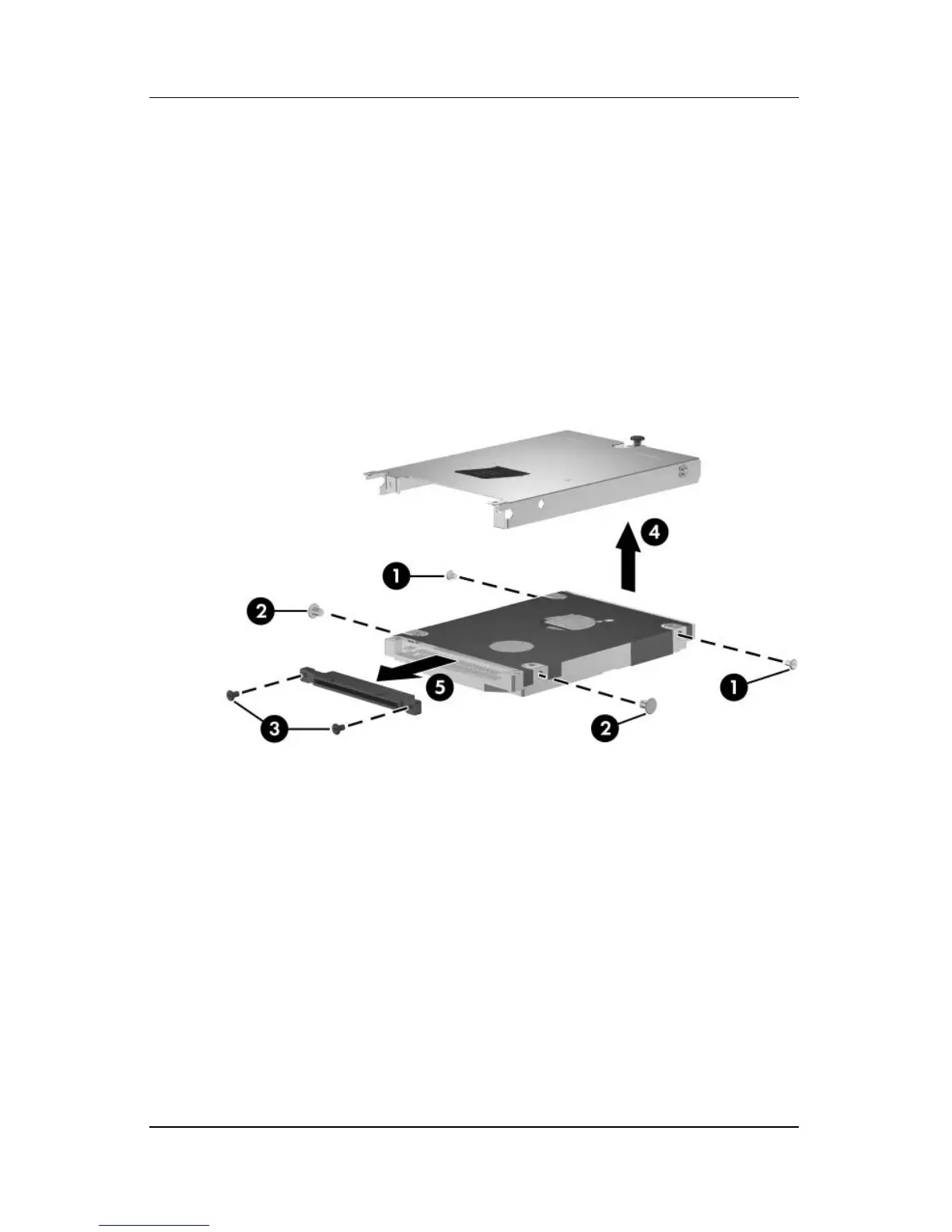

g. Remove the 2 PM2.5×4.0 hard drive frame shoulder
screws 1 from each side of the hard drive.
h. Remove the 2 PM2.5×4.0 hard drive frame screws 2 from
each side of the hard drive.
i. Remove the 2 PM1.5×3.5 hard drive frame screws 3 from
the front of the hard drive.
j. Lift the frame straight up 4 to remove if from the hard
drive.
k. Remove the hard drive connector 5 from the hard drive.
Removing the Hard Drive Frame and Connector
Reverse the above procedure to install and reassemble the
hard
drive.
