5–8 Maintenance and Service Guide
Removal and Replacement Procedures

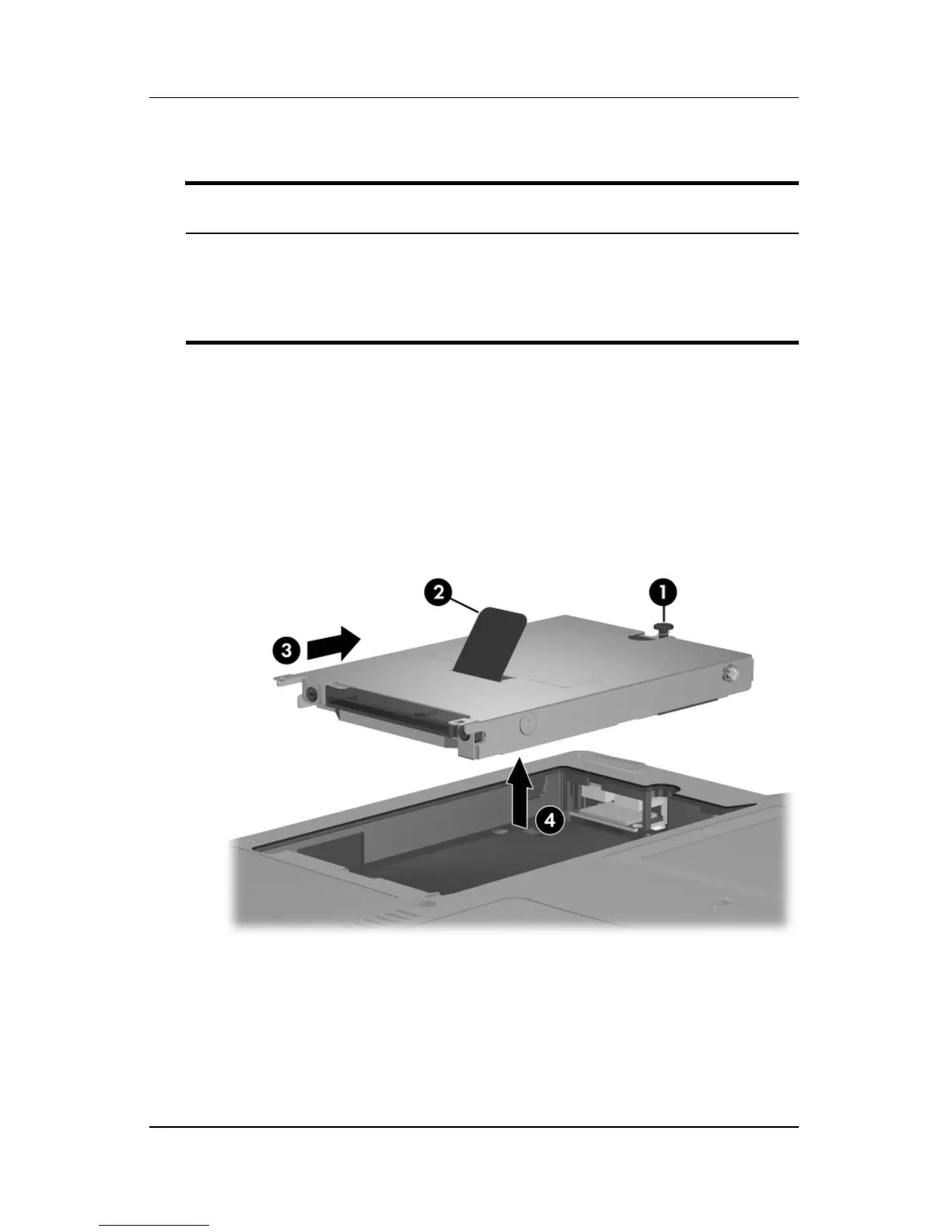

d. Loosen the PM2.5×13.0 spring-loaded hard drive
retention screw 1.
e. Grasp the mylar tab 2 on the left side of the hard drive
and slide the hard drive to the right 3 to disconnect it
from the system board.
f. Remove the hard drive from the hard drive bay 4.
Removing the Hard Drive
Hard Drive Spare Part Number Information
5400-rpm
80-GB
60-GB
40-GB
380108-001
378215-001
380107-001
4200-rpm
80-GB
60-GB
30-GB
378214-001
378213-001
378211-001
