Removal and Replacement Procedures
Maintenance and Service Guide 5–41
2. Remove the two PM2.0×4.0 screws 1 that secure the
USB/S-Video controller board to the top cover.
3. Lift the right side of the board 2 to disconnect it from the
system board.
4. Remove the USB/S-Video controller board.

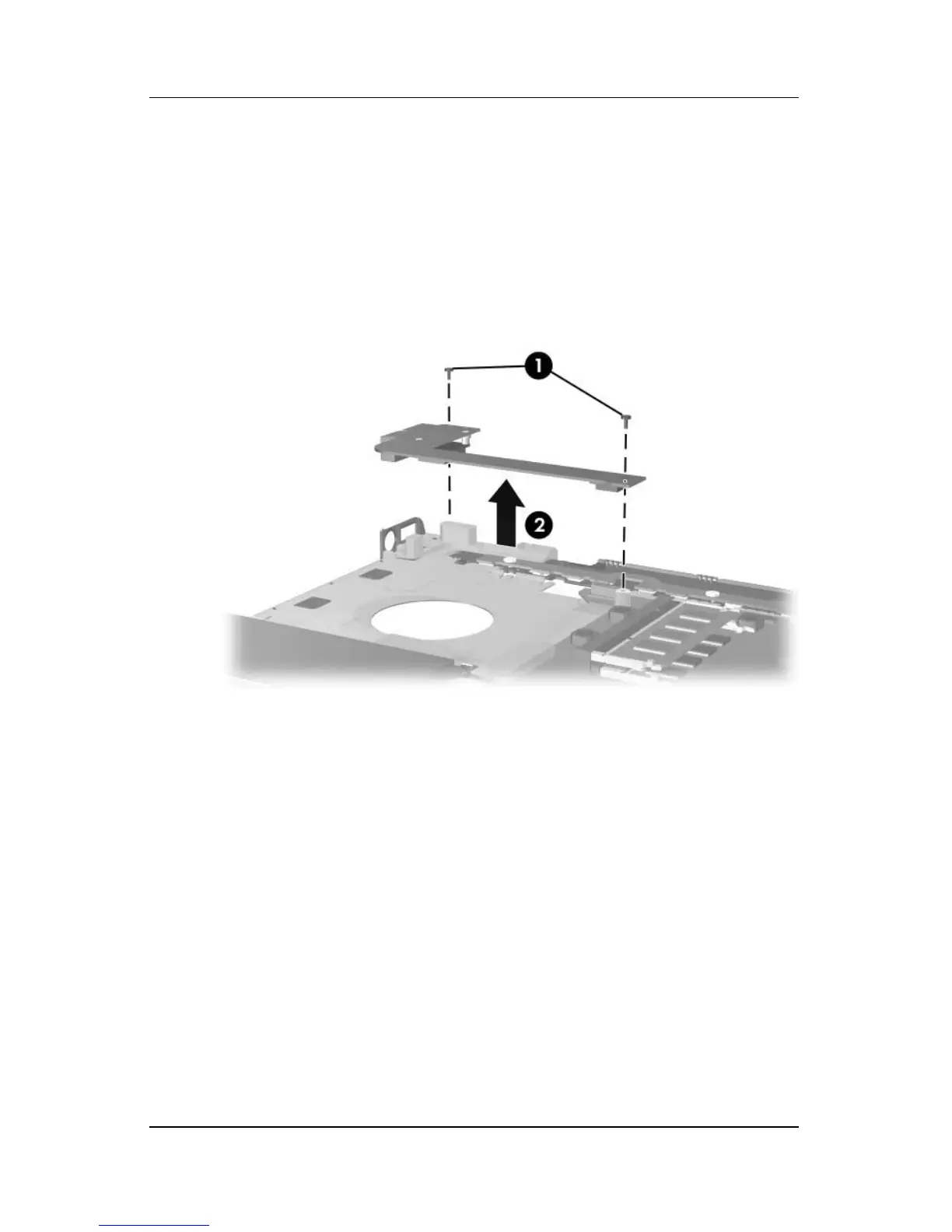

Removing the USB/S-Video Controller Board
Reverse the above procedure to install the USB/S-Video
controller board.
