Re
mov
a
l and R
eplacement Pr
ocedures
Maintenance and Serv
ice Gui
de
5–4
9

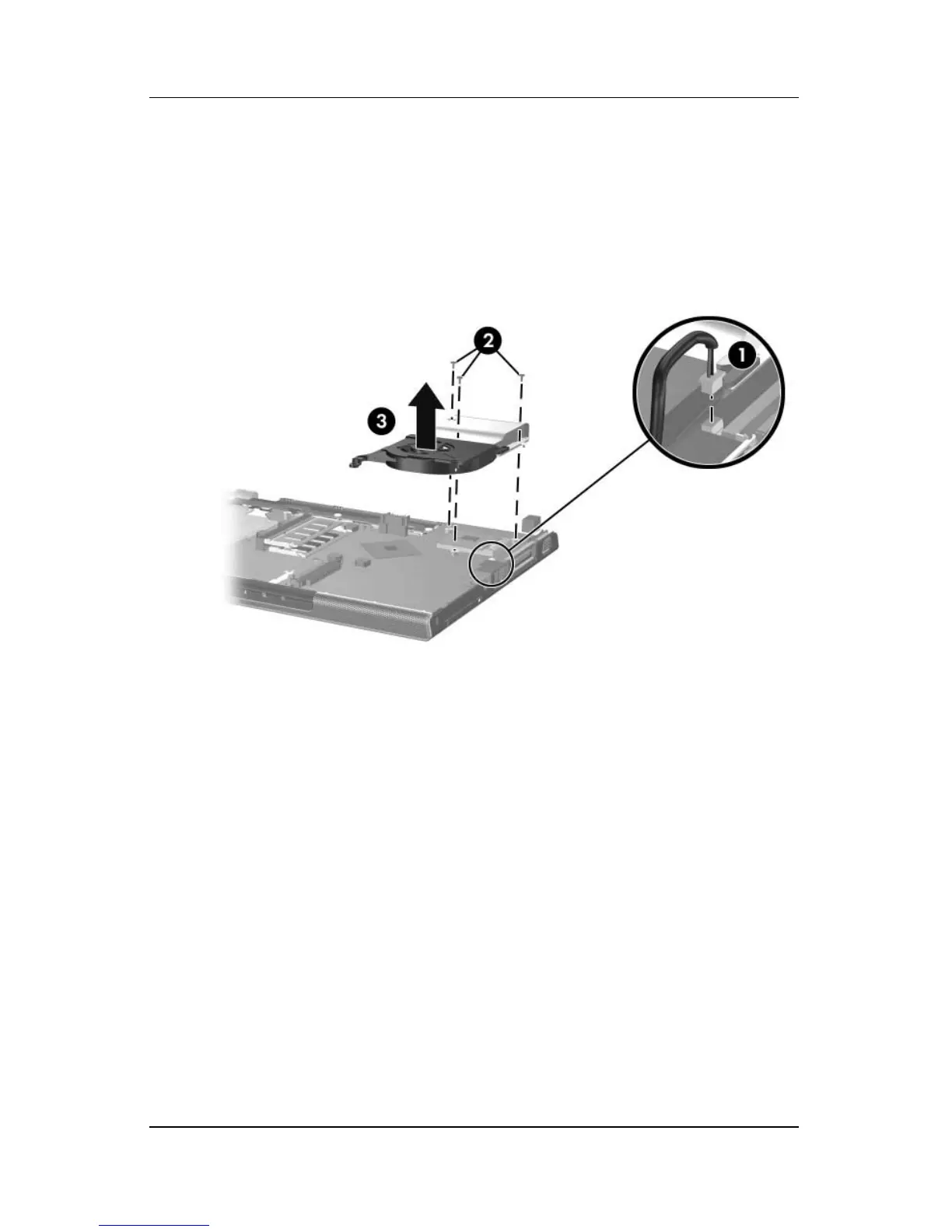

3.
Disconnect the fan cable from the system board
1
.
4.
Remov
e the three PM2.0×4.0 screws
2
that secure the heat
sink to the top cov
er
.
5.
Remov
e the heat sink
3
.
R
emo
v
ing the Heat Sink
Re
v
erse the abov
e procedure to install the heat sink.
159
161
Table of Contents
Default Chapter
3
Table of Contents
3
1 Product Description
5
Features
6
Resetting the Computer
8
Power Management
9
External Components
10
Front Components, HP Pavilion Dv1000
10
Front Components
11
Front Components, HP Compaq Nx4800 and Compaq Presario V2000
12
Right-Side Components, HP Pavilion Dv1000
14
Right-Side Components, HP Compaq Nx4800 and Compaq Presario V2000
16
Rear and Left-Side Components, HP Pavilion Dv1000
18
Rear and Left-Side Components, HP Compaq Nx4800/Compaq Presario V2000
20
Keyboard Components, HP Pavilion Dv1000
22
Keyboard Components
23
Keyboard Components, HP Compaq Nx4800 and Compaq Presario V2000
24
Top Components, Part 1, HP Pavilion Dv1000
26
Top Components, Part 2, HP Pavilion Dv1000
28
Top Components, Part 3, HP Pavilion Dv1000
30
Top Components, Part 1, HP Compaq Nx4800 and Compaq Presario V2000
32
Top Components, Part 2, HP Compaq Nx4800 and Compaq Presario V2000
34
Bottom Components, HP Pavilion Dv1000
36
Bottom Components, HP Compaq Nx4800 and Compaq Presario V2000
38
Design Overview
40
2 Troubleshooting
41
Using Computer Setup
41
Selecting from the Main Menu
42
Selecting from the Security Menu
43
Selecting from the Advanced Menu
44
Selecting from the Tools Menu
44
Troubleshooting Flowcharts
45
Flowchart 2.1—Initial Troubleshooting
47
Flowchart 2.2—No Power, Part
48
Flowchart 2.3—No Power, Part
49
Flowchart 2.4—No Power, Part
50
Flowchart 2.5—No Power, Part
51
Flowchart 2.6—No Video, Part
52
Flowchart 2.7—No Video, Part
53
Nonfunctioning Docking Device
54
Flowchart 2.9—No Operating System (Os) Loading
55
No os Loading, Hard Drive
56
Flowchart 2.13—No os Loading, Diskette Drive
59
No os Loading, CD-ROM or DVD-ROM Drive
60
No os Loading for Quickplay Application
61
No Audio
63
Nonfunctioning Device
65
Nonfunctioning Keyboard
66
Nonfunctioning Pointing Device
67
No Network/Modem Connection
68
3 Illustrated Parts Catalog
69
Serial Number Location
69
Computer Major Components
70
Computer Major Components, HP Compaq Nx4800 and Compaq Presario V2000
72
Computer Major Components, HP Pavilion Dv1000
74
Miscellaneous Plastics Kit
88
Mass Storage Devices
90
Miscellaneous
93
Sequential Part Number Listing
95
Removal and Replacement Preliminaries
105
Tools Required
105
Service Considerations
105
Preventing Damage to Removable Drives
106
Plastic Parts
106
Cables and Connectors
106
Preventing Electrostatic Damage
107
Packaging and Transporting Precautions
108
Workstation Precautions
109
Grounding Equipment and Methods
110
Typical Electrostatic Voltage Levels
111
Static-Shielding Materials
111
5 Removal and Replacement Procedures
112
Serial Number
113
Disassembly Sequence Chart
114
Preparing the Computer for Disassembly
115
Battery Pack Spare Part Number Information
116
Removing the Battery Pack
116
Hard Drive
117
Hard Drive Spare Part Number Information
117
Removing the Hard Drive Cover
118
Removing the Hard Drive
119
Removing the Hard Drive Frame and Connector
120
Computer Feet
121
Memory Module
121
Memory Module Spare Part Number Information
121
Removing the Memory Module Compartment Cover
122
Removing the Memory Module
123
Mini PCI Communications Card
124
Spare Part Number Information
124
Removing the Mini PCI Compartment Cover
125
Removing a Mini PCI Communications Card
126
Optical Drive
127
Optical Drive Spare Part Number Information
127
Removing the Optical Drive
128
Switch Cover
129
Switch Cover Spare Part Number Information
129
Removing the Switch Cover Screws, HP Pavilion Dv1000 Models
130
Releasing the Switch Cover, HP Pavilion Dv1000 Models Only
131
Removing the Switch Cover, HP Pavilion Dv1000 Models Only
132
Keyboard
135
Keyboard Spare Part Number Information
135
Removing the Keyboard Screws, HP Pavilion Dv1000 Models Only
136
Releasing the Keyboard, HP Pavilion Dv1000 Models Only
137
Disconnecting the Keyboard Cable, HP Pavilion Dv1000 Models Only
138
Display Assembly
141
Disconnecting the Wireless Antenna Cables
142
Base Enclosure
146
Base Enclosure Spare Part Number Information
146
USB/S-Video Controller Board
151
Removing the USB/S-Video Controller Board
152
Speaker Assembly
153
Removing the Speaker Assembly
154
RTC Battery
155
Removing the RTC Battery
155
Menu Control Button Board
156
Disconnecting the Menu Control Button Board Cable
157
Removing the Menu Control Button Board and Shield
158
Heat Sink
159
Heat Sink Spare Part Number Information
159
Removing the Heat Sink
160
Fan
161
Fan Spare Part Number Information
161
Removing the Fan
162
Processor
163
Processor Spare Part Number Information
163
Removing the Processor
164
System Board
165
System Board Spare Part Number Information
165
Disconnecting the Touchpad Cable
167
Releasing the System Board
170
LED Board
173
LED Board Spare Part Number Information
173
Removing the LED Board Screws, HP Pavilion Dv1000 Models Only
174
6 Specifications
176
Hard Drives
179
4X DVD+RW/R and CD-RW Combo Drive
183
4X DVD±RW/R and CD-RW Combo Drive
185
8X DVD±RW/R and CD-RW Combo Drive
187
8X Max DVD-ROM Drive
189
System DMA
191
System Interrupts
192
System I/O Addresses
194
System Memory Map
197
Connector Pin Assignments
198
Universal Serial Bus
198
RJ-45 (Network)
199
S-Video-Out
200
External Monitor
201
RJ-11 (Modem)
202
Audio-In (Microphone)
203
Audio-Out (Headphone)
203
Power Cord Set Requirements
204
3-Conductor Power Cord Set
204
General Requirements
205
Country-Specific Requirements
206
3-Conductor Power Cord Set Requirements
206
Screw Listing
208
Phillips PM2.0×5.0 Screw
209
Phillips PM2.0×5.0 Screw Locations
209
Phillips PM2.5×4.0 Screw
212
Phillips PM2.0×7.0 Screw
213
Phillips PM2.0×4.0 Screw
217
Phillips PM2.0×3.0 Screw
227
Phillips PM1.5×2.0 Screw
231
Index
232
