OCIO/ ITS Infrastructure Deployment Branch HP/Compaq TC4400 Tablet PC User Guide
2.12.1 HP External USB MultiBay Cradle 2.0
To connect the External DVD/CD-RW using the External MultiBay II USB Cable:
1. Connect the single-connector end of the External MultiBay II USB Cable (Item 1,
Figure 2.12.1.a) to the USB Powered port on either the tablet or the docking station.
Be sure the connector pin is inserted completely in the pin slot.
2. Connect the USB connector on the other end of the cable (Item 2, Figure 2.12.1.a)
to the USB connector on the External DVD/CD-RW.
3. Connect the 5-volt plug (Item 3, Figure 2.12.1.a) to the power connector on the
External DVD/CD-RW.
3
2
1

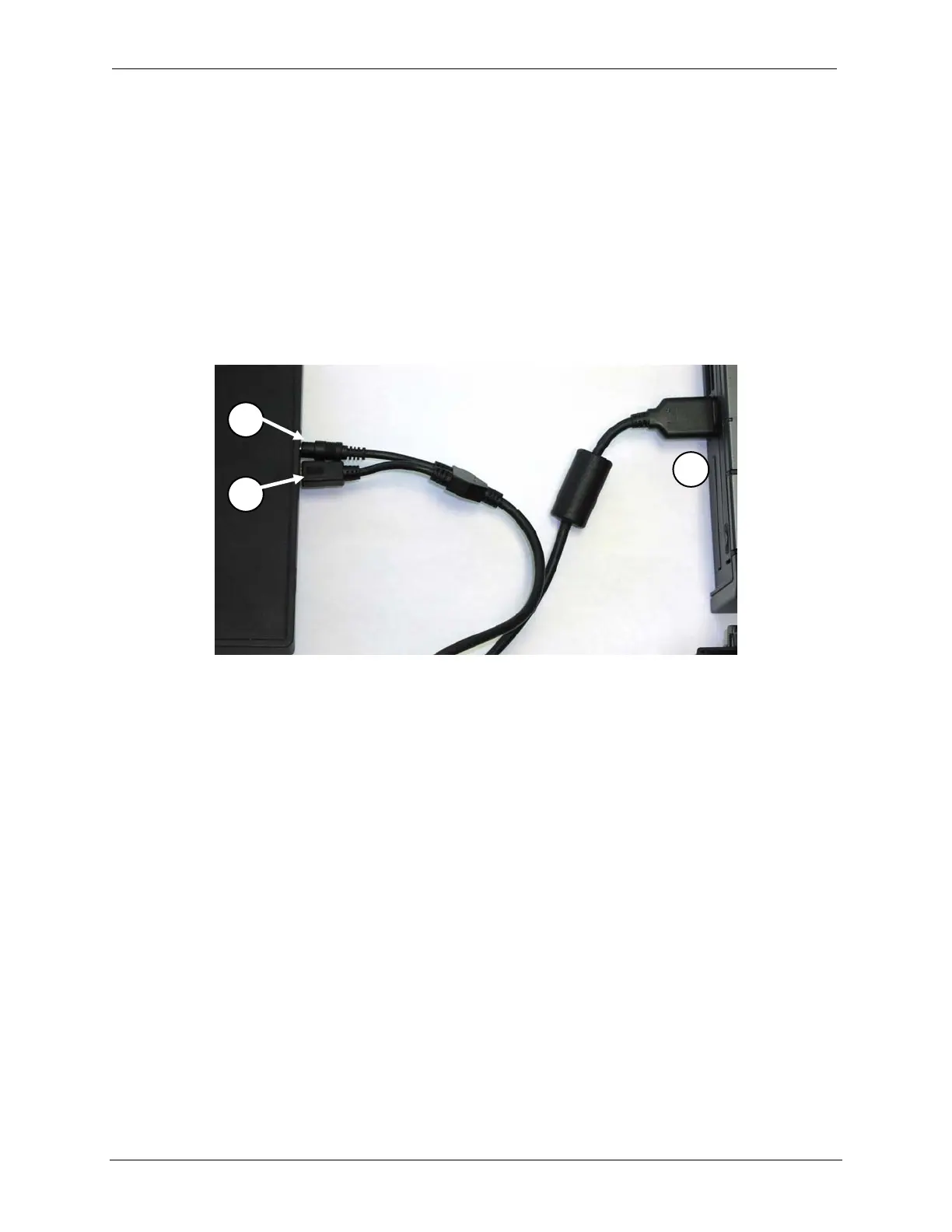

Figure 2.12.1.a – External DVD/CD-RW-Powered USB Cable
2.12.1.1 Using the Standard USB Cable
1. Plug the AC Adapter cable into the power connector on the back of the External
DVD/CD-RW.
2. Plug the prong adapter into an electrical outlet.
3. Connect one end of the standard USB cable to the USB connector on the External
DVD/CD-RW.
4. Connect the other end to any USB connector on the computer.
2.12.1.2 Disconnecting the External DVD/CD-RW
To disconnect the External DVD/CD-RW from the computer:
1. If you are connected to AC power, unplug the power cable from the electrical outlet,
and then unplug the AC Adapter cable from the External DVD/CD-RW.
2. Unplug the USB cable from the computer.
Final ACD00.60000-00.F*0-ITS
21
