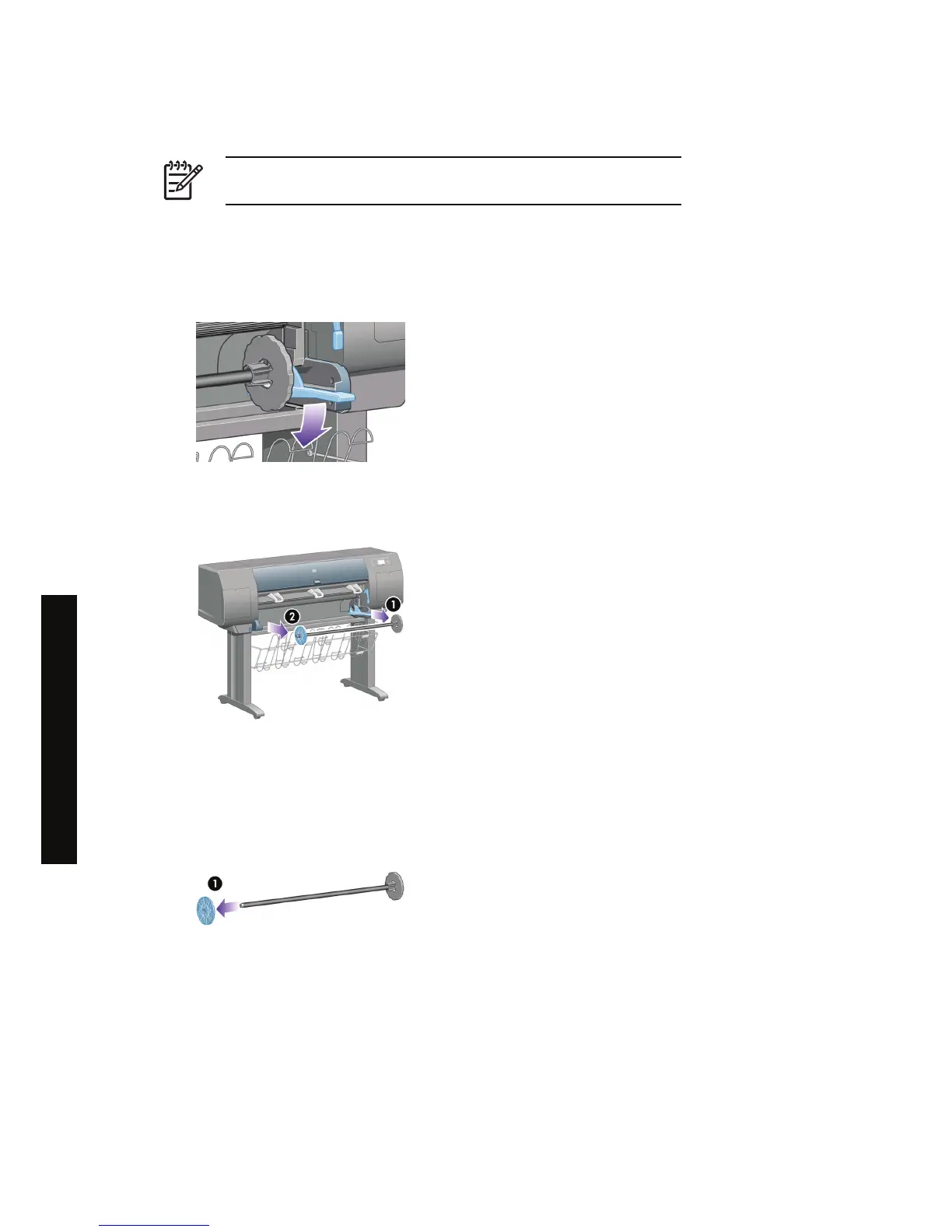

Load a roll onto the spindle [4000]
NOTE This topic applies to the HP Designjet 4000 Printer series only.
1. Make sure the printer wheels are locked (the brake lever is pressed down) to prevent the printer
from moving.
2. Lower the spindle lever.
3. Remove the right-hand end of the spindle (1) from the printer, then move it to the right in order to
extract the other end (2). Do not insert your fingers into the spindle supports during the removal
process.
The spindle has a stop at each end to keep the roll in position. The stop at the left-hand end can be
removed to mount a new roll, it slides along the spindle to hold rolls of different widths.
4. Remove the blue paper stop (1) from the left-hand end of the spindle.
18 Chapter 3 How do I... (paper topics) ENWW
