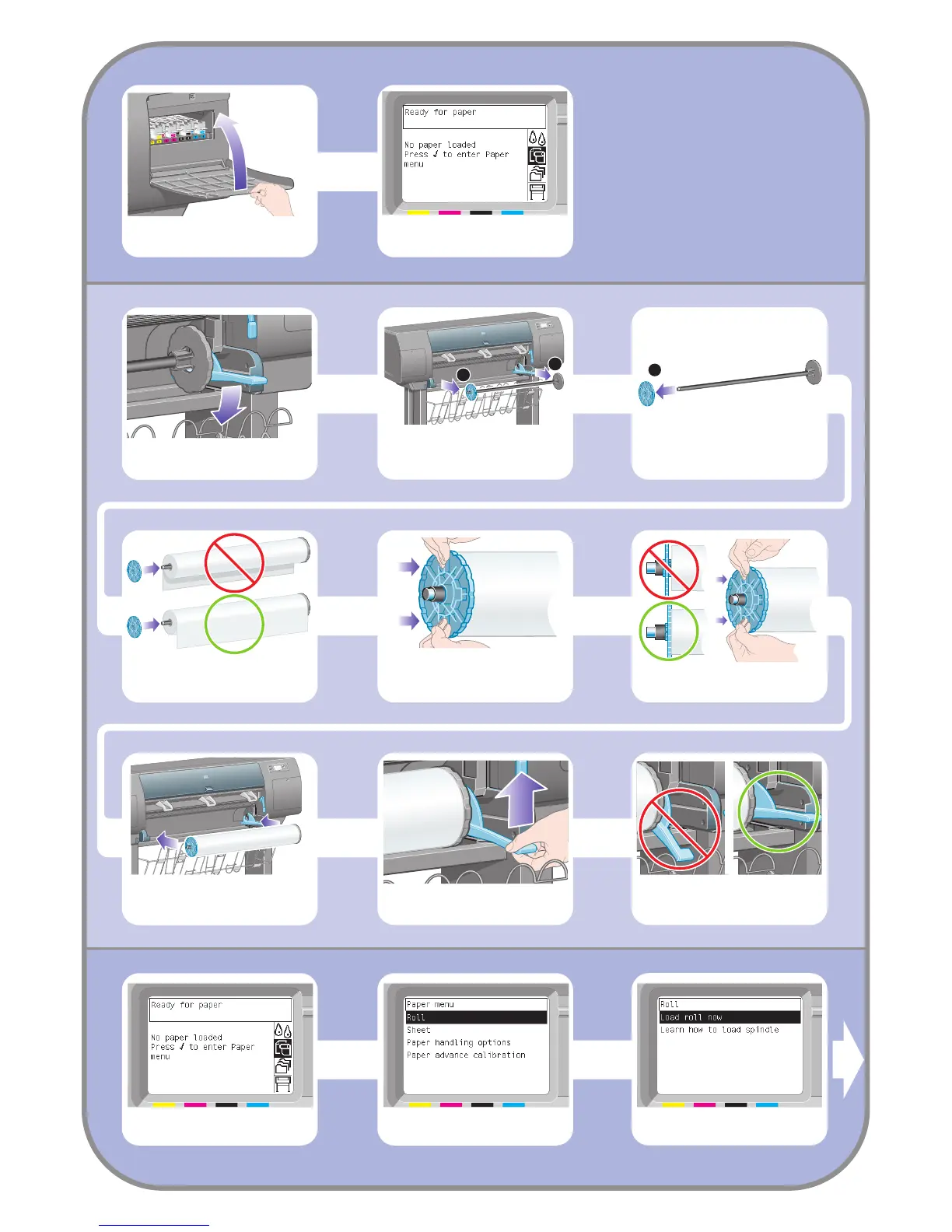

HP Designjet 4000 Setup Instructions

1
2
1
9
Put the blue-colored stop onto the spindle and
push it on as far as it will go without using
excessive force.
Make sure the blue-colored stop is seated
correctly.
With the blue stop on the left, slide the spindle
into the printer. The blue spindle lever will drop
down automatically as you insert the spindle.
Once you meet resistance, lift the blue lever to
seat the spindle properly.
The spindle lever will be in the horizontal position
when the spindle has been correctly inserted.
The front panel displays the above. Highlight
‘Load roll now’ and press the Select (
) key.
From the front panel, highlight the Paper icon and
press the Select () key.
From the front panel, highlight ‘Roll’ and press
the Select (
) key.
12 Loading the paper
Remove the right-hand end of the spindle (1) from
the printer, then move it to the right in order to
extract the other end (2).
Remove the blue-colored stop (A) from the left-
hand end of the spindle. Keep the spindle
horizontal.
Slide the roll of paper that came with your printer
onto the spindle. Make sure the paper is oriented
exactly as shown.
11 Installing a roll
Lower the spindle lever.
Wait until you see this front panel message.
Press the Select (
) key.
Close the printhead cleaner door.

HP Designjet 4000 Specifications

General

Print Technology	Thermal Inkjet
Maximum Print Width	42 inches
Memory	256 MB
Ink Types	Dye-based (color), pigment-based (black)
Number of Ink Cartridges	4
Media Types Supported	Bond and coated paper, technical paper, film, photographic paper, backlit
Interface	USB 2.0, Ethernet
Maximum Print Size	42 inches (1066.8 mm) wide, unlimited length
Roll Maximum Outer Diameter	13.5 cm
Roll Width	24 to 42 inches
Hard Disk Capacity	40 GB
Operating Systems	Windows, Mac OS X
