Removal and Installation
HP Designjet 4500 Printer Series Service Manual

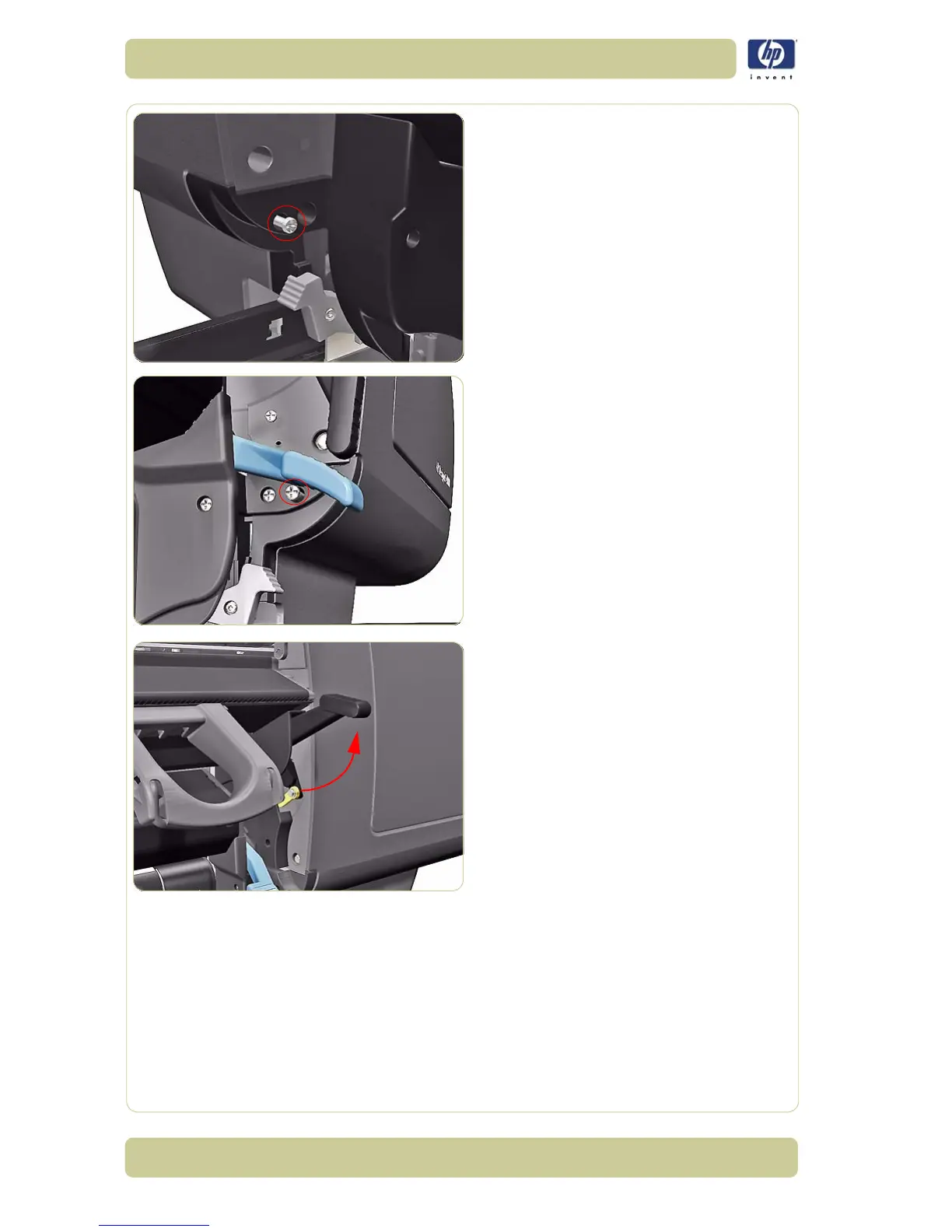

7. Remove one T15 screw (Type J) that
secures the Left Cover.
8. Remove one T15 screw (Type J) that
secures the Right Cover.
9. Move the Drive Pinch Lever to the Up
position.
