8-153
Removal and Installation
HP Designjet 4500 Printer Series Service Manual

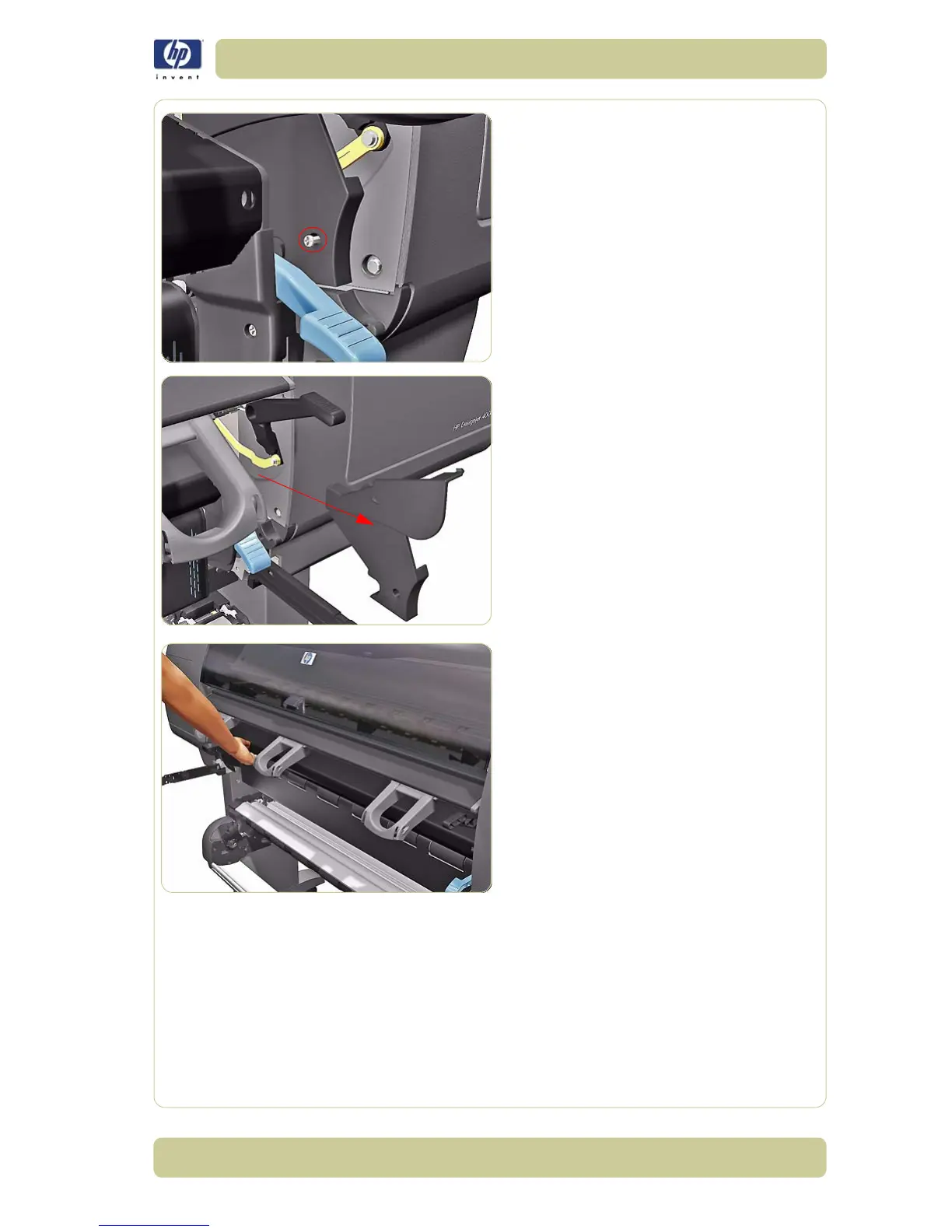

10. Remove one T15 screw (Type G) that
secures the Drive Pinch Lever Bezel from the
right side of the Roll 1 Module.
11. Remove the Drive Pinch Lever Bezel.
12. Pull the Roll 1 Module towards you a little
to get access to the cables behind.
To Next Page
