HP Designjet T7100 Mono

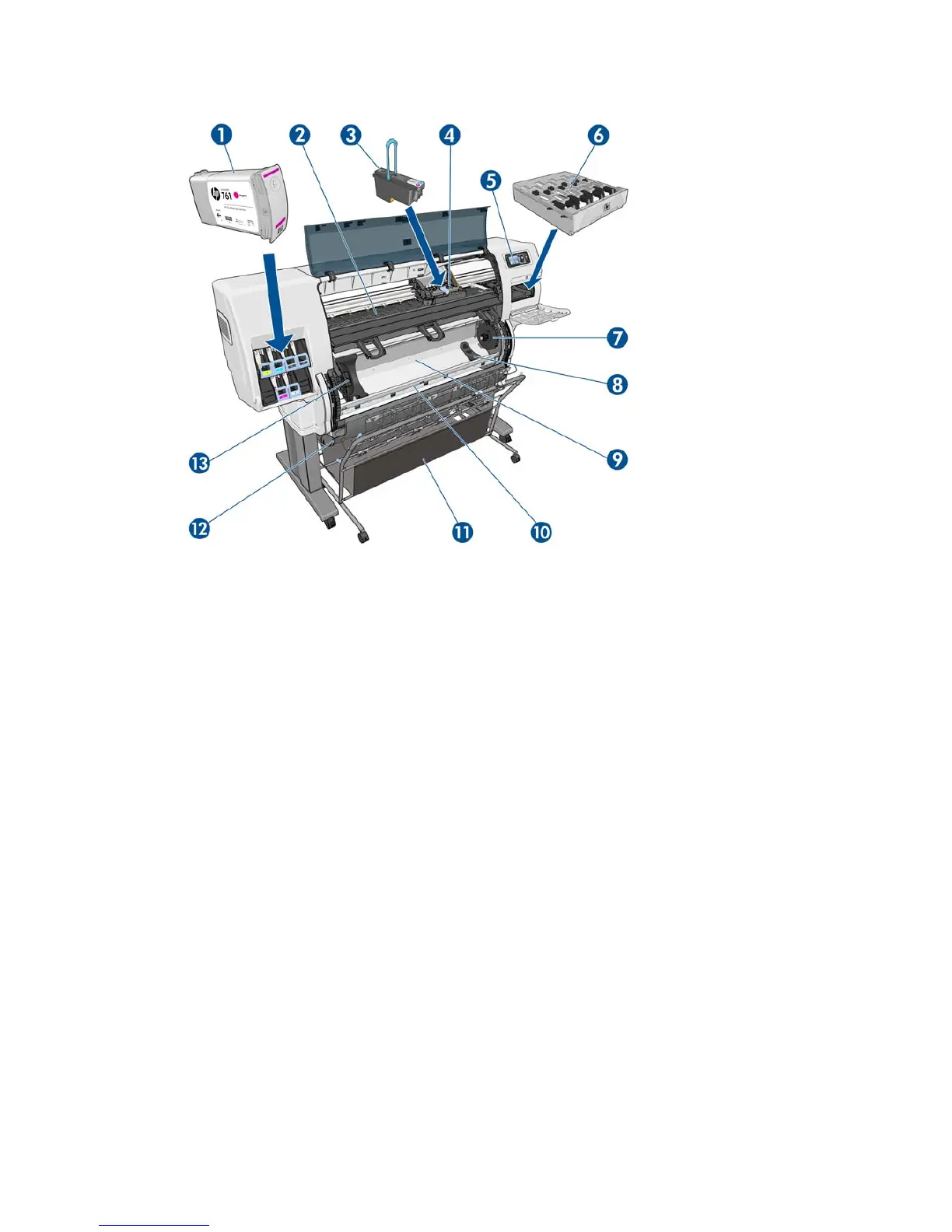

Front view
1. Ink cartridge
2. Platen
3. Printhead
4. Printhead carriage
5. Front panel
6. Maintenance cartridge
7. Right hub
8. Roll support
9. HP Smart Roll-Loading System
10. Paper feed brake
11. Bin/Basket
12. Roll door
13. Left hub
ENWW The printer’s main components 5
