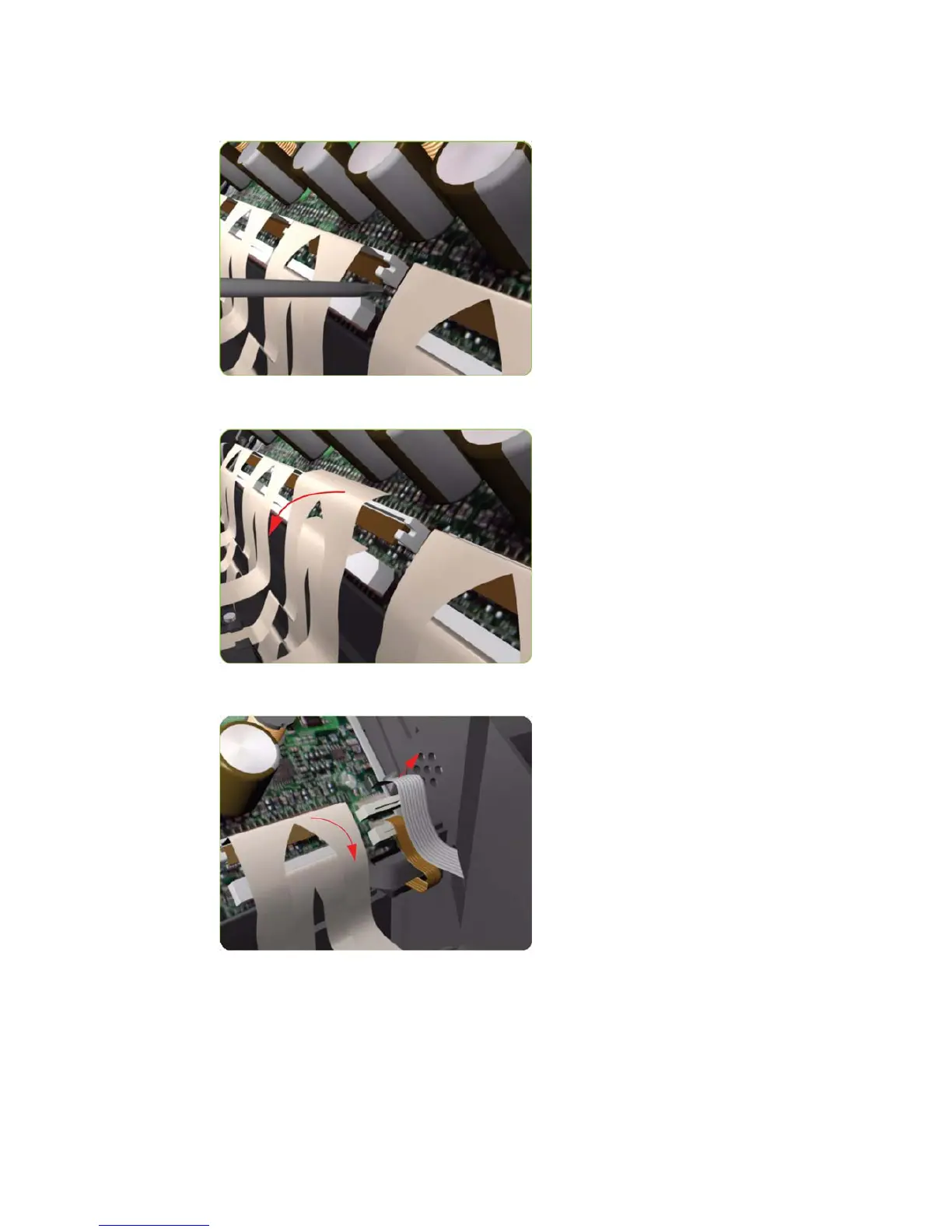

4. Use a flat-bladed screwdriver to release the ALL the clips, securing the Carriage Flex Cables to the
Carriage Assembly, by pulling upwards.
5. Disconnect the Flex Cables from the Carriage PCA.
6. Disconnect the Line Sensor Cable and the Encoder Sensor Cable from the Carriage PCA.
