HP Designjet Z6100 Printer series

Window (42-inch) 261
Removal & Installation
Installation of New Window

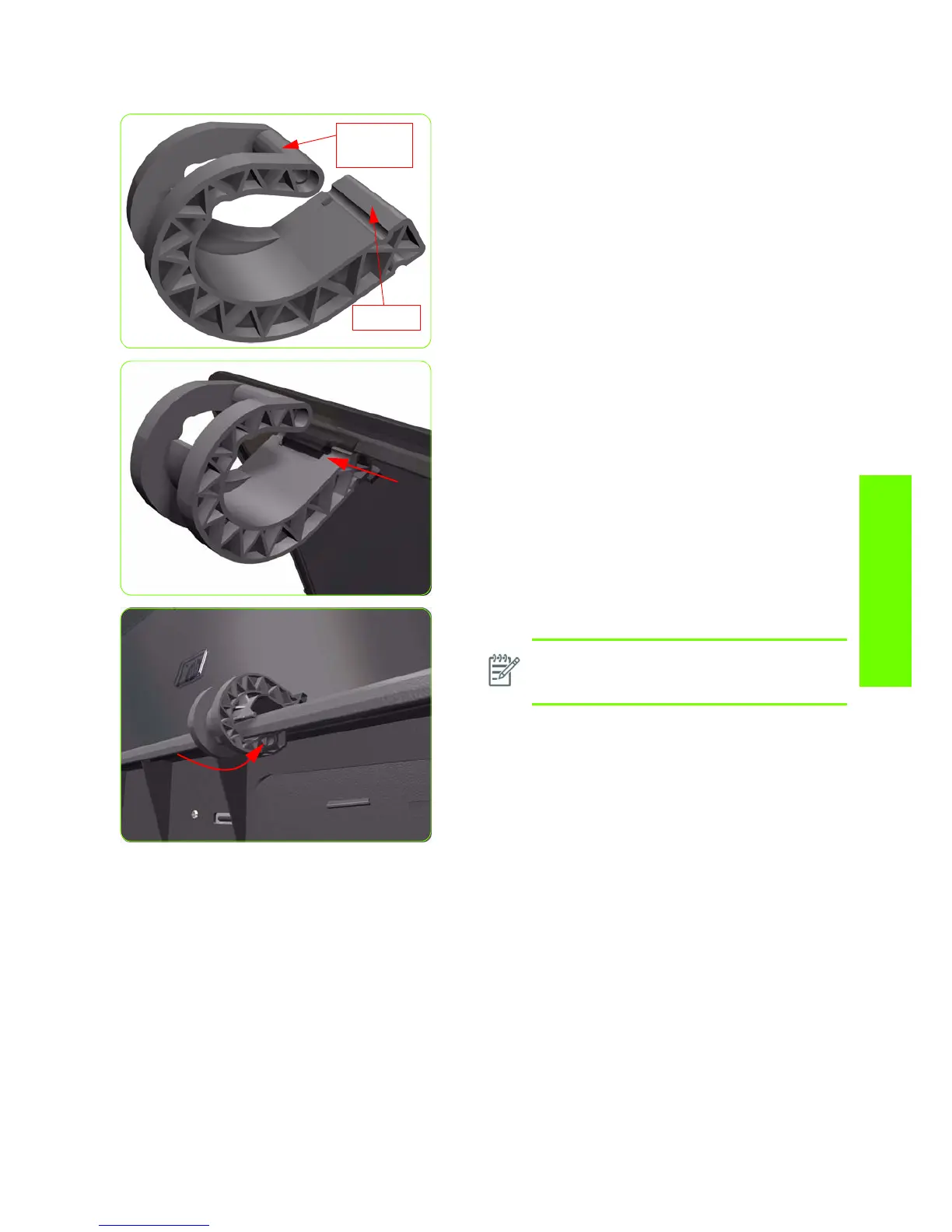

1. Identify the two ends of the Window hinge (four in
total) - one end is clipped to the Window and the other
to the Top Cover.
2. Slide the Window hinges on to the Window.
3. Clip the Window Hinges to the Top Cover.
Window
Top
Cover
NOTE: Since the hinges are very hard to clip,
you will need to forcefully clip the Window
hinges to the Top Cover.
