Rear Door (42-inch) 281
Removal & Installation
Rear Door (42-inch)
Removal

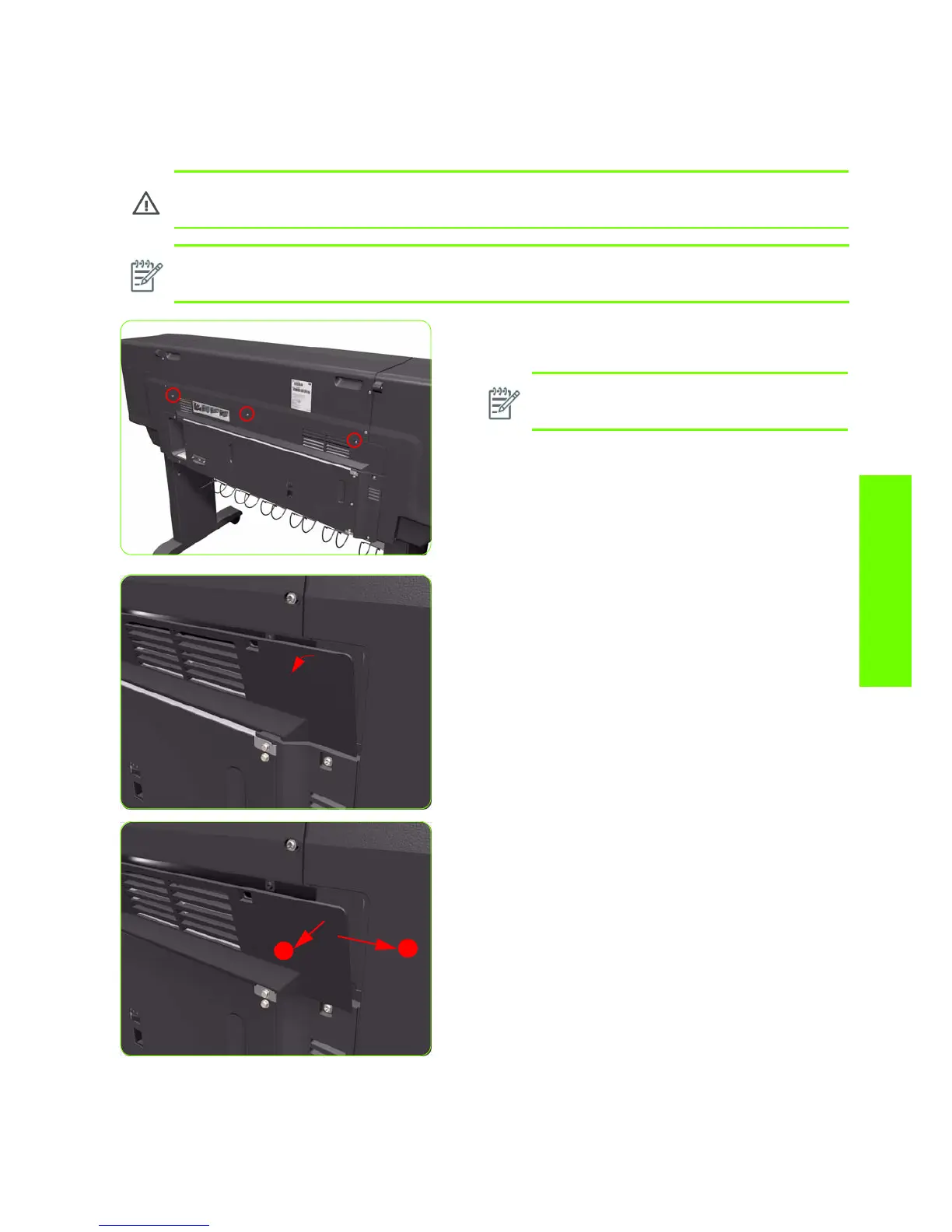

1. Remove three T-15 screws (Type G) from the Rear
Door.
2. Open the Rear Door slightly (as shown).
3. To release the right hand hinge of the Rear Door, move
the Rear Door to the right (1) and towards you (2).
WARNING!: Switch off the printer and remove the power cable.
NOTE: Throughout this section the graphics actually show the HP Designjet 4000 Printer series but the
steps of the procedure are identical for the HP Designjet Z6000 Printer series.
NOTE: Each screw includes a washer (part
number 3050-1267).
